ROLLER SHUTTER DOOR FORMING MACHINE WITH CHAIN TRANSMISSION

Thickness: 0.8-1.0mm
Stations: 12
Cutting type:Hydraulic cutting
Transmission by chain
Working speed: 15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Hydraulic cutting---Run out table

TECHNICAL DETAILS

Frame:One piece frame

Uncoiler:3 tons electric uncoiler

Forming station:12

Driving type:Chain transmission

Main motor power:7.5kw

Hydraulic system:4kw

Electrical system:Delta control

Cutting type:The hosts stop when cutting

Punching system:Hydraulic punching

Cooling system:Water cooling

Material thickness:0.8-1mm

Material width:

Forming speed:15m/min

Run out:6m

MACHINE PHOTOS

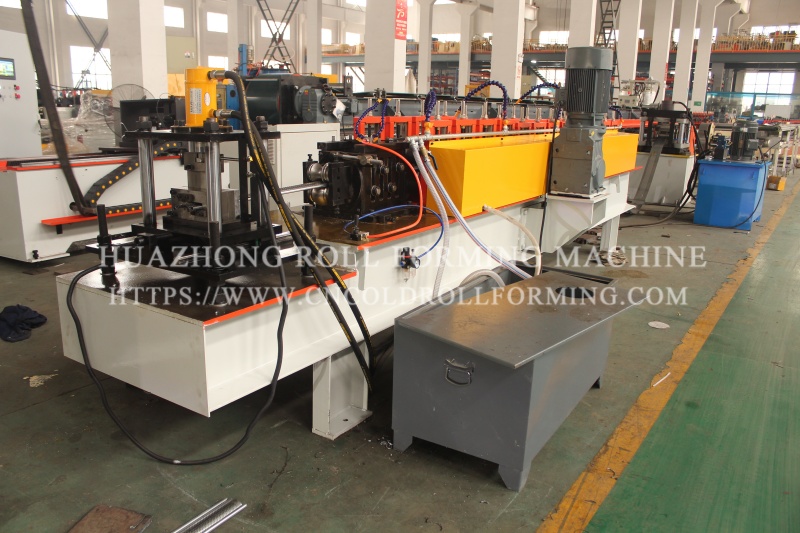

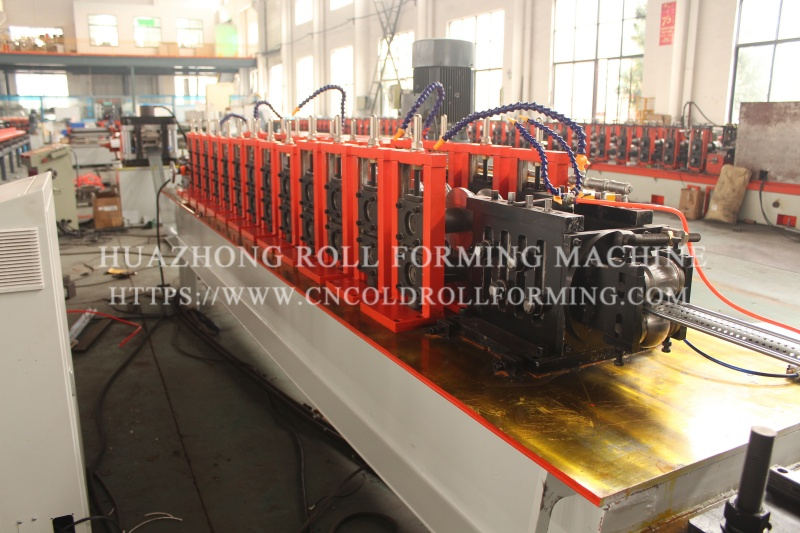

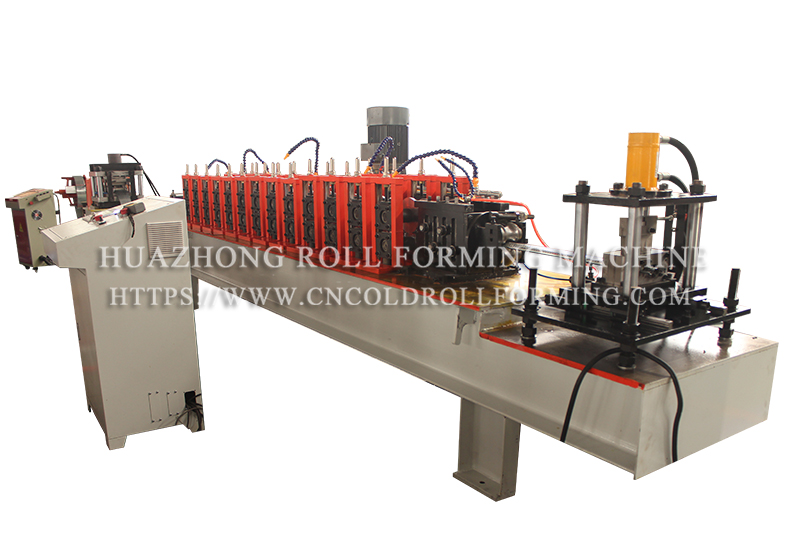

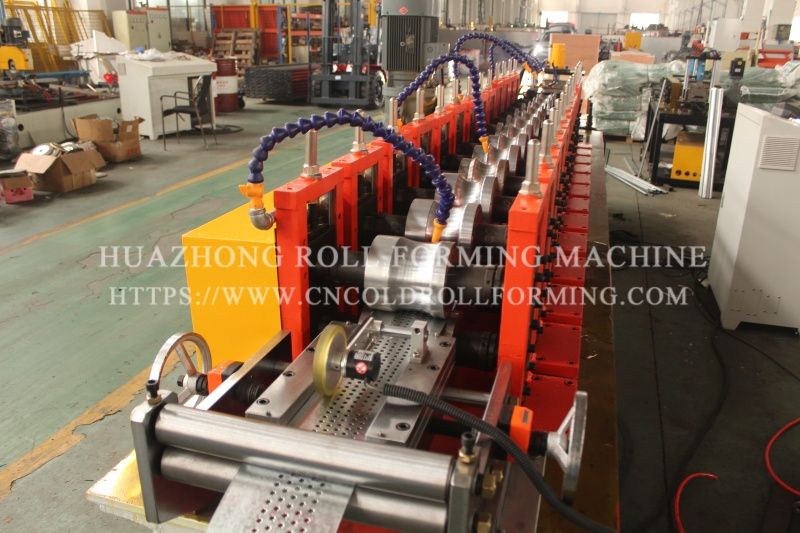

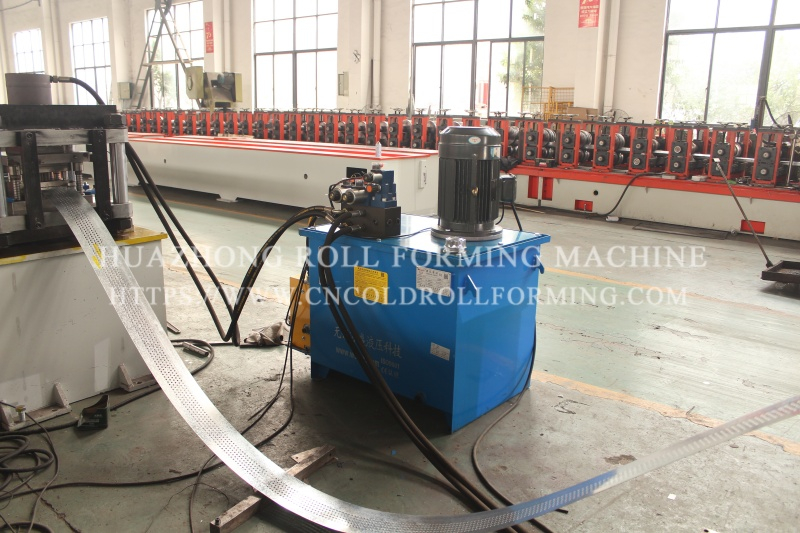

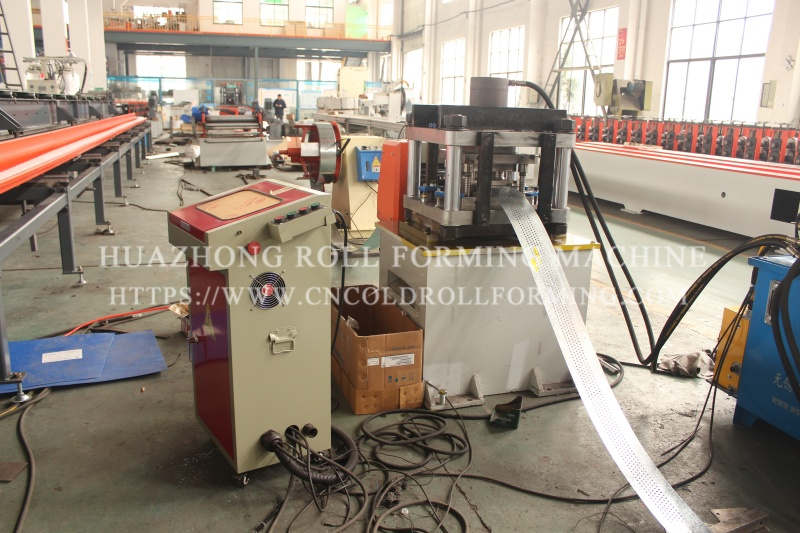

ROLLER SHUTTER DOOR MACHINE (2)ROLLER SHUTTER DOOR MACHINE (1)
