ROLLER SHUTTER DOOR FORMING MACHINERY(CHAIN)

Stations: 12
Galvanized steel: 0.8-1.2mm
Cutting type: hydraulic cutting
Transmission by chain
Working speed: 15-20m/min (including cutting)
  • HZ

  • HZ

  • 8455229090

Availability:

PRODUCT DESCRIPTION

PROFILES/PICTURES OF THE MACHINE

TECHNICAL DETAILS

1.Un-coiler


Capacity: 2 tons

Material: #45 steel quenched

Maximum inner diameter: 570mm

Manual un-coiler

Maximum width of coil: 350

L*W*H: 1200mm*920mm*1300mm

2.Main roll former


Stations: 12

Rollers material: CR 15, HRC 60. Chrome coated: 0.03-0.05mm, Strength (MPA): 70 tons, 800 MPA

Shaft: diameter 55mm, material is #45 steel. Quenched hot treatment. Strength of the main shaft (MPA): 70 tons, 650MPA

Bearing brand: HRB

Main motor: 5.5KW, 220V, 50HZ, 3 Phases (OMT Brand)

Transmission by chain

Station material: cast steel

3.PLC control cabinet


Touch screen brand: Delta

PLC brand: Delta

Inverter brand: Delta

Main components for low pressure electricity: Schneider Germany

Encoder: Omron

4.Output table


Length: 6 meters

Drive type: rollers

5.Cutting platform


Cutting type: hydraulic cutting

Motor: 4KW, 380V, 50HZ, 3 Phases

The material of knives: SKD11

Servo motor: 1.5KW, 220V

Tolerance of length: ±0.5mm

6.Input material


Material: Galvanized

Galvanized steel: 0.8-1.2mm

7.Dimension (L*W*H)


15.8m*1.55m*1.86m

8.Working speed


15-20m/min (including cutting)

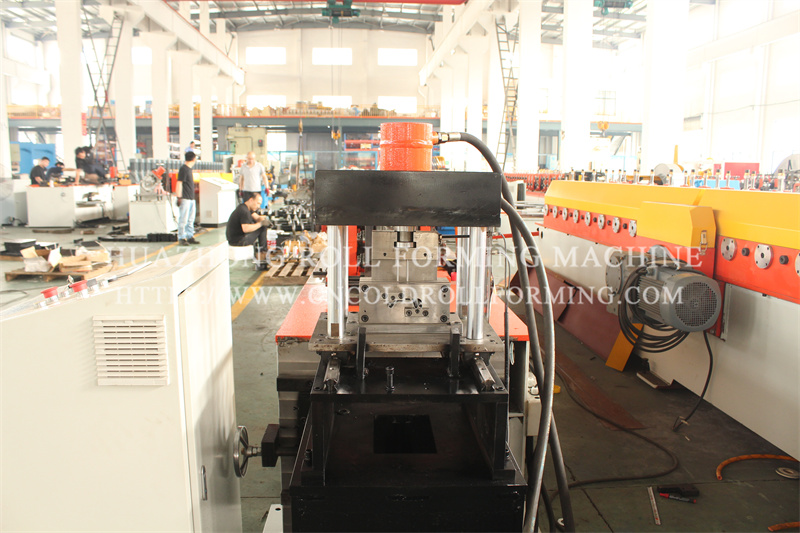

MACHINE PHOTOS
