ANTI-FIRE SHUTTER DOOR MACHINE (SMALL)

Thickness: 0.8-1.0mm
Forming stations: 12
Drive type: gear transmission system
Cutting type: hydraulic cutting with servo motor
Forming speed: 12-15m/min

  • HUAZHONG
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Leveling---Hydraulic cutting with servo motor---Run out

TECHNICAL DETAILS

One-piece frame

Embedded hydraulic station: 4KW, 380V, 50/60 HZ, 3 Phase

Embedded electric cabinet: Delta PLC control system, Delta inverter

Cantilever console: Delta touch screen

Uncoiler: 2 Tons

Thickness: 0.8-1.0mm

Coil width:137mm (According to the profile type)

Forming stations: 12

Main motor power: 7.5KW, 380V, 50/60 HZ, 3 Phase

Cutting type: hydraulic cutting with servo motor

Punching Machine: 25 Tons

Forming speed: 12-15m/min

Forming speed (including punching): 8-10m/min

Drive type: gear transmission system

Cooling system

MACHINE PHOTOS

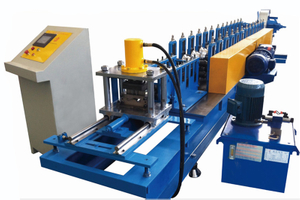

ANTI-FIRE SHUTTER DOOR MACHINE SMALL-1
