PU FOAMED SHUTTER DOOR FORMING MACHINE

Thickness: 0.6-1.0mm(black)/0.8-1.2(Positive panel)
Stations: Upper 12 stations, lower 12 stations, Compound 12 stations, forming 12 stations
Cutting type:Fly saw cutting with servo motor
Transmission by helical gear
Working speed: 15m/min
  • HUAZHONG
  • HUAZHONG
  • 8455229090
Availability:

PRODUCT DESCRIPTION

Technical process:

Double uncoiler(upper and lower floor)-preheating-roll forming-high speed fly saw cutting with servo motor-run out table

TECHNICAL DETAILS

Double roller shutter door forming machine



Frame: One piece frame

Uncoiler:2T electric uncoiler*2

Forming station:Upper 12 stations, lower 12 stations, Compound 12 stations, forming 12 stations

Driving type:Gear transmission

Main motor power:7.5*2kw,1kw*2 Anchuan servo motor

Material thickness:Color coated plate / aluminum plate / stainless steel,0.6-1.0mm(black)/0.8-1.2(Positive panel)

Forming speed:Main machine 30m/min, forming speed:15-20m/min

Run out:Pneumatic run out table*2

Others:4m bridge in the middle of the main machine

MACHINE PHOTOS

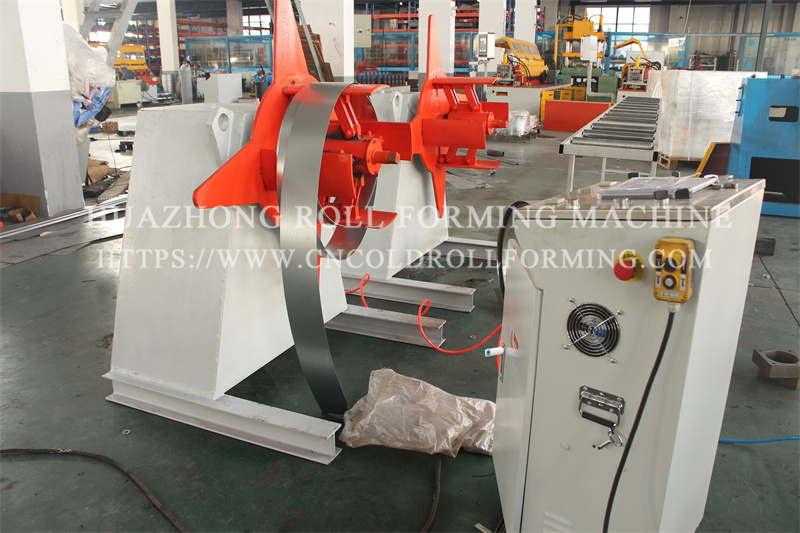

Double roller shutter door forming machine (5)

Double roller shutter door forming machine (3)

Double roller shutter door forming machine (1)

Double roller shutter door forming machine (4)
