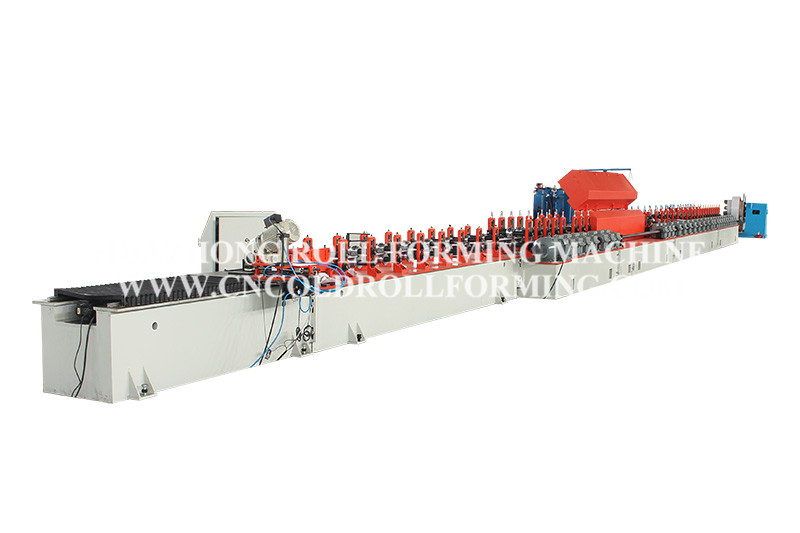

77 PU ROLLER SHUTTER DOOR ROLL FORMING MACHINE

Thickness: 0.5mm aluminium
Stations:36
Cutting type:Fly saw cutting with servo motor
Transmission by chain
Working speed: 5-12m/min
  • HUAZHONG
  • HUAZHONG
  • 8455229090
Availability:
Inquire

PRODUCT DESCRIPTION

3 tons uncoiler --- roll forming---heating--heat preservation---roll forming---shaping---fly saw cutting with servo motor --- run out table

TECHNICAL DETAILS

Frame:One piece frame

Uncoiler: 3 tons manual uncoiler

Forming station:36

Main motor power:7.5kw

Cutting type:Fly saw cutting with servo motor

Driving type：120 gearbox transmission

Material thickness:0.5mm aluminium

Forming speed:5-12m/min

Run out:6m pneumatic discharge table

MACHINE PHOTOS

77 roller shutter door forming machine (6)77 roller shutter door forming machine (3)77 roller shutter door forming machine (1)
