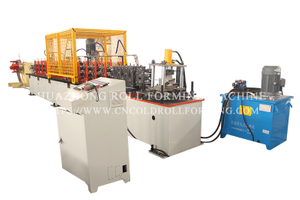

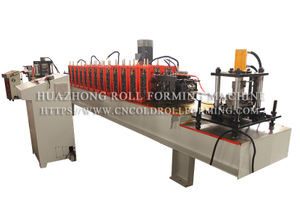

ROLLER SHUTTER DOOR FORMING MACHINE(SMALL)

One-piece frame;
Gear transmission
High precision;
Hydraulic cutting;
Germany COPRA software for professional roller design.

  • HZ-80
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

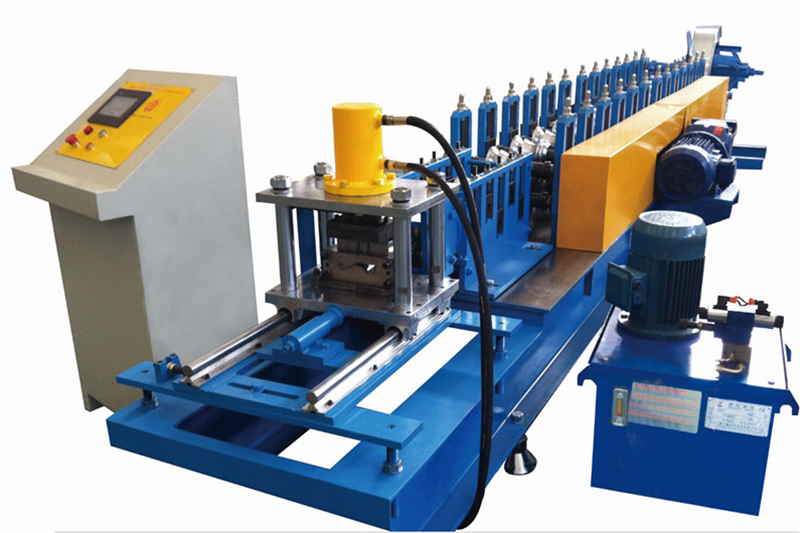

roller shutter door forming machine-4

Uncoiler---Punching---Feeding guide---Roll forming---Hydraulic die cutting---Run out table



TECHNICAL DETAILS

One-piece frame

Embedded hydraulic station: 4KW, 380V, 50/60 HZ, 3 Phase

Embedded electric cabinet: Delta PLC control system, Delta inverter

Cantilever console: Delta touch screen

Uncoiler: 2 Tons

Thickness: 0.8-1.0mm

Coil width:142mm (According to the profile type)

Forming stations: 12

Main motor power: 5.5KW, 380V, 50/60 HZ, 3 Phase

Cutting type: hydraulic cutting with servo motor

Punching Machine: 25 Tons

Forming speed: 12-15m/min

Forming speed (including punching): 8-10m/min

Drive type: gear transmission system

Cooling system

MACHINE PHOTOS

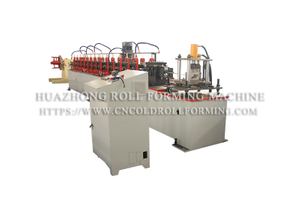

roller shutter door forming machine-2

4
