OCTAGONAL TUBE ROLL FORMING MACHINERRY

Thickness: 0.4-0.6mm
Forming stations: 16
Fly saw cutting with servo motor
Drive type: gear transmission system
Forming speed: 12-15m/min

  • HZ

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Hydraulic punching---Feeding guide---Roll forming---Fly saw cutting with servo motor---Run out table

TECHNICAL DETAILS

Frame: One-piece steel frame

Uncoiler: 2 Tons

Forming station: 16

Driving type: gear transmission

Main motor power: 5.5KW*2,220/380V,50/60HZ,3 Phase,OMT

Hydraulic system: 7.5KW,1 stations

Electrical system: Delta control system, external electric cabinet

Cutting type: Fly saw cutting with servo motor, 1.5KW Delta servo motor

Punching system: Hydraulic punching

Material thickness: 0.4-0.6mm，DX51D galvanized sheet

Material width: 143mm

Forming speed: 12-15m/min

Run out: 6m

MACHINE PHOTOS

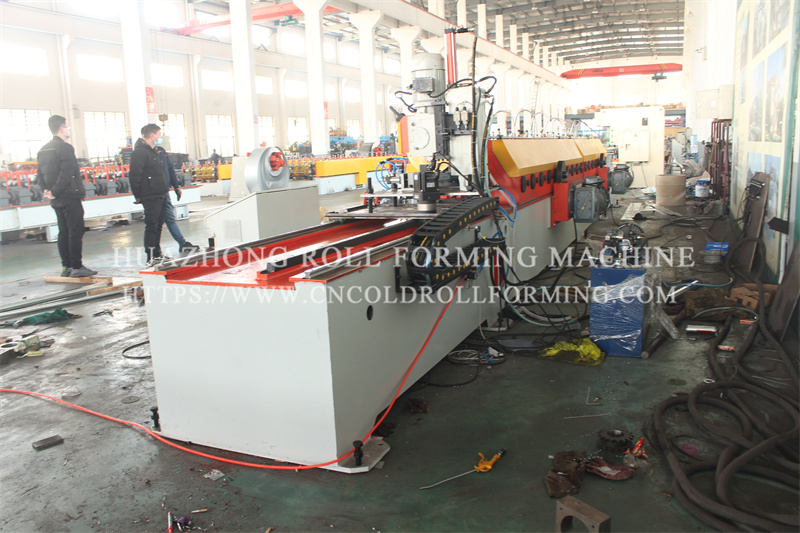

Octagonal tube roll forming machine (5)Octagonal tube roll forming machine (4)Octagonal tube roll forming machine (2)
