OCTAGONAL TUBE FORMING MACHINE(GEARBOX TRANSMISSION)

One-piece frame;
High precision;
Hydraulic cutting;
Germany COPRA software for professional roller design;
Quick change system for producing pipes with different specifications.

  • HZ-40/60/70

  • HUAZHONG

  • 8455229090

Availability:
Inquire

Product Description

Uncoiler---Punching machine---Feeding guide---Roll forming---Fly saw cutting with servo motor---Run out table

TECHNICAL DETAILS

Uncoiler: 3 Tons

Fly saw cutting with servo motor

PLC automatic control system

Cooling system

25 Tons punching machine

Run out table

Thickness: 0.8-1.2mm

Drive type: gearbox transmission

Forming stations: 20

Main power:7.5KW

Forming speed: 8-15m/min


MACHINE PHOTOS

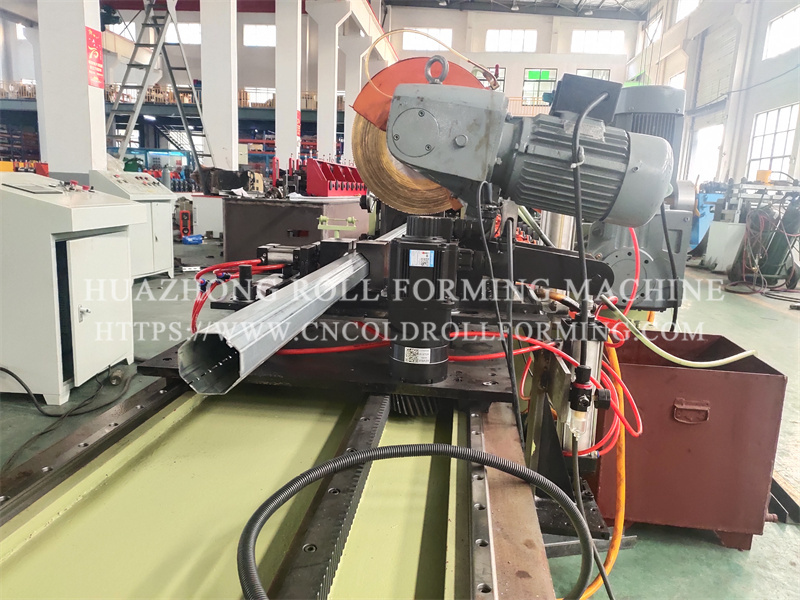

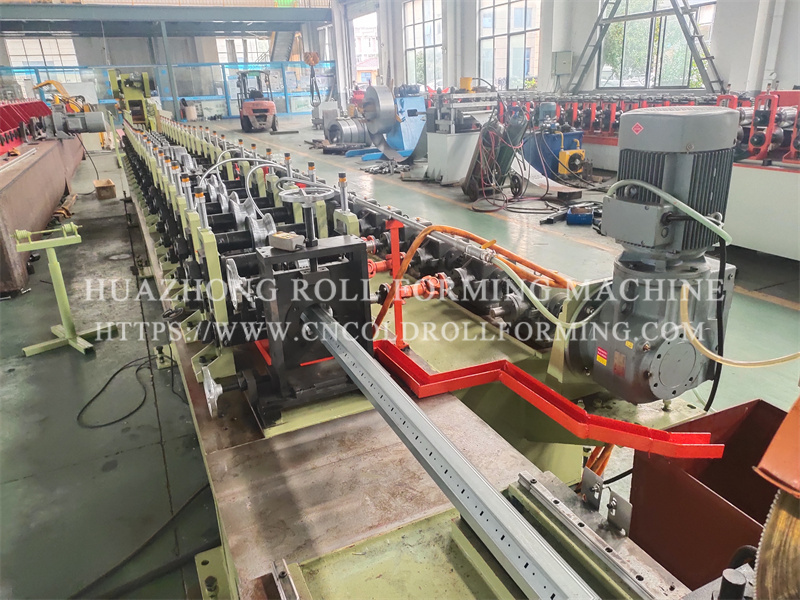

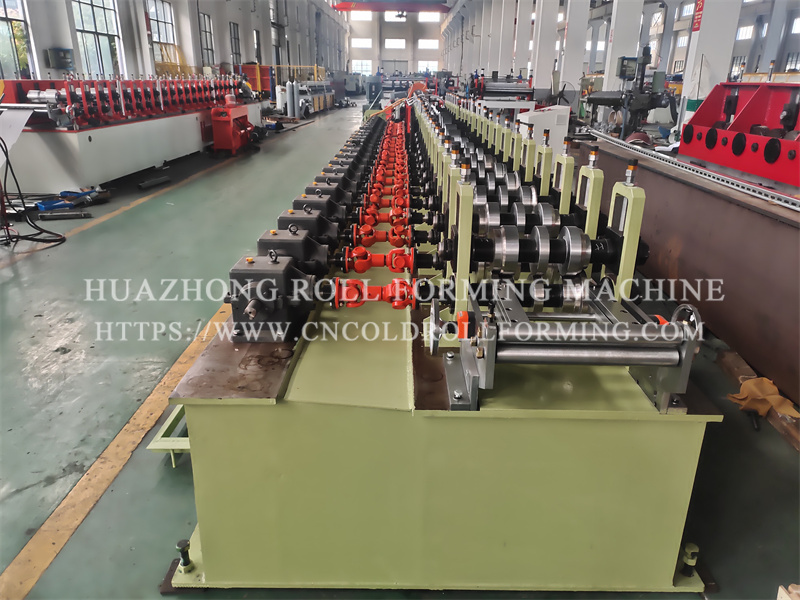

octagonal tube roll forming machine (4)octagonal tube roll forming machine (5)octagonal tube roll forming machine (3)
