OCTAGONAL TUBE ROLL FORMING MACHINE WITH QUICK CHANGE SYSTEM

Thickness: 1.2-1.5mm
Forming stations: 30
Fly saw cutting with servo motor
Drive type:helical gear transmission system
Forming speed:8-10m/min

  • HZ
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

Uncoiler---Hydraulic punching---Feeding guide---Roll forming---Fly saw cutting with sevo motor---Run out table


TECHNICAL DETAILS

Frame: One-piece frame, quick change system

Uncoiler: 5 Tons hydraulic without car

Forming station: 30

Driving type: helical gear transmission system

Main motor power: 15KW*2,220/380V,50/60HZ,3 Phase, Siemens motor

Hydraulic system: 11KW,380V 50HZ,16Mpa

Electrical system: Siemens control system

Cutting type: Fly saw cutting with servo motor, Delta servo motor

Punching system: Hydraulic punching with servo feeding

Cooling system: Water cooling system

Material thickness: 1.2-1.5mm, G550 galvanized sheet

Forming speed: 8-10m/min

Run out: 6m run out table

Others: 3KW servo leveling feeding

MACHINE PHOTOS

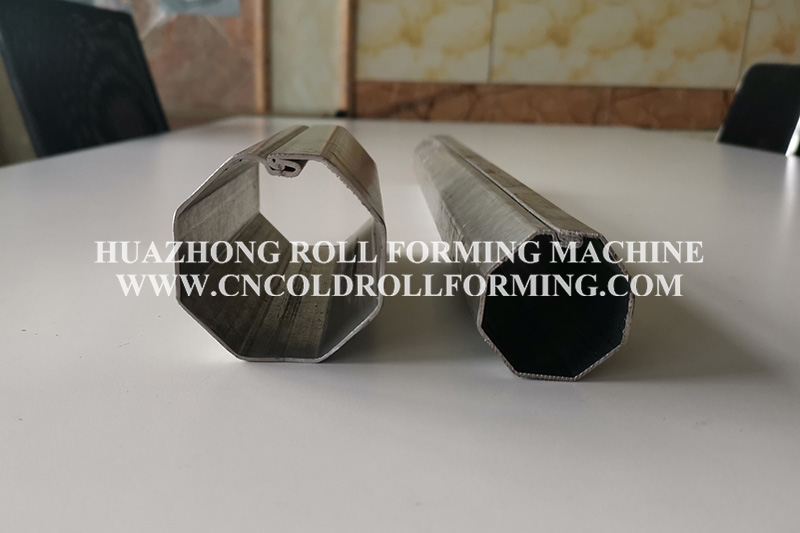

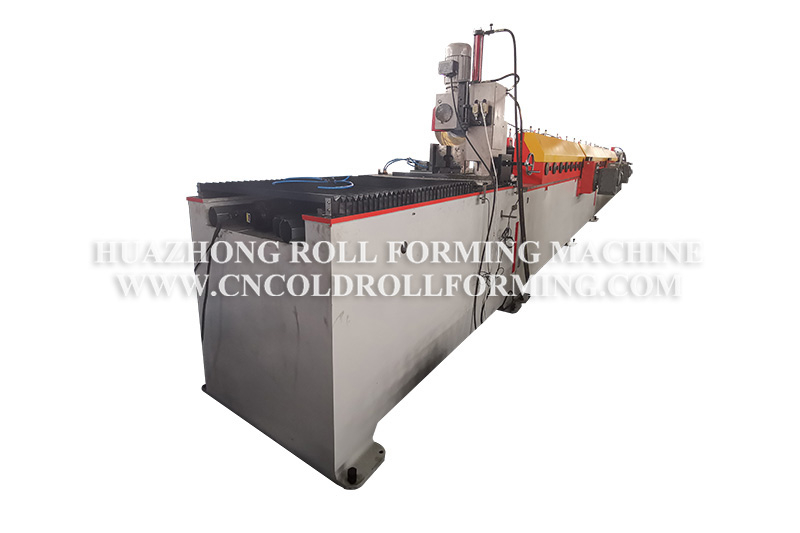

Octagonal tube roll forming machine (2)Octagonal tube roll forming machine (9)
