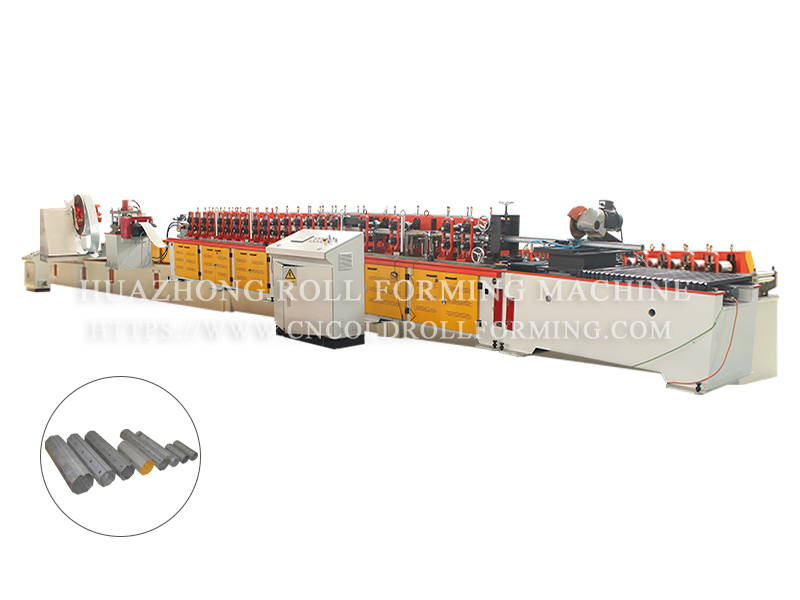

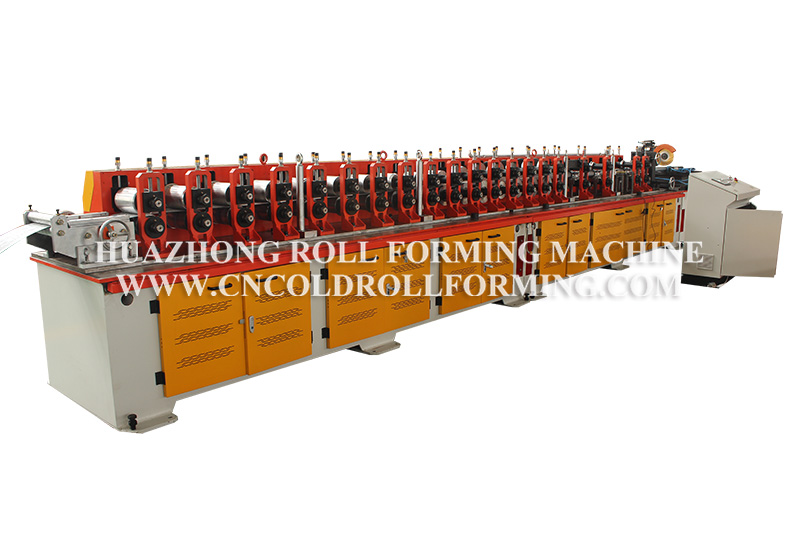

OCTAGONAL TUBE ROLL FORMING MACHINE (QUICK CHANGE SYSTEM)

Uncoiler---Hydraulic punching---Servo feeding---Roll forming---fly saw cutting with servo motor---Run out

One-piece frame

Quick change system

Uncoiler: 3 Tons

Forming stations: 24

Electric cabinet: Siemens Control System

Cantilever console: Siemens touch screen

Main motor power: 7.5*2KW, 220/380V, 50/60 HZ, 3 Phase

Punching: hydraulic punching, 40/60 two sets of mould

External hydraulic station: 5.5KW, 220/380V, 50/60 HZ, 3 Phase, accumulator and Air cooling

Thickness: HZ-40: 0.4-0.6mm; HZ-60: 0.5-1.0mm

Feeding type: 1.5 KW servo feeding (Siemens), more than 100 times per minute

Cutting type: 1.5KW fly saw cutting with servo motor (Siemens), 3 KW fly saw cutting head

Forming speed: 15m/min, 12m/min (with punching)

Drive type: gear transmission system

Lubricating cooling system
