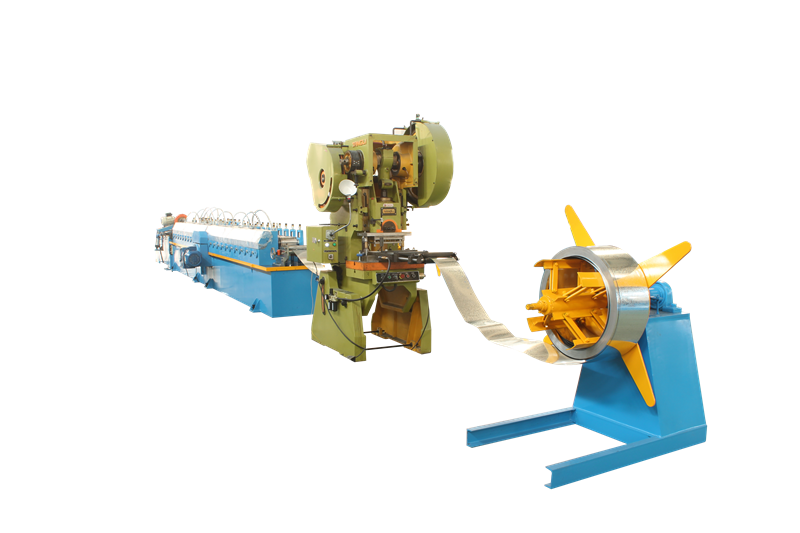

OCTAGONAL PIPE ROLL FORMING MACHINE (QUICK CHANGE SYSTEM)

European standard machine;
Fast working speed;
Fly saw cutting;
PLC control;
Quick change system

  • HZ-40/60/70
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

Uncoiler---Automatic punching---Feeding guide---Roll forming---Lubricationg cooling system---Fly saw cutting with servo motor---Run out table

TECHNICAL DETAILS

Uncoiler: 2 Tons

Fly saw cutting with servo motor

PLC automatic control system

Cooling system

25 Tons punching machine

Run out table

Thickness: 0.4-1.2mm

Coil width (HZ-40) :143mm

Coil width (HZ-60): 210mm

Coil width (HZ-70): 248mm

Drive type: gear box with universal joint transmission system/gear transmission system

Forming stations: 20

Main power:7.5KW

Forming speed: 8-15m/min

Forming Spec: HZ-40/60/70

MACHINE PHOTOS

octagonal pipe roll forming machine quick change system-10octagonal pipe roll forming machine quick change system-11
