ANTI-FIRE ROLLER SHUTTER DOOR FORMING MACHINE

European standard machine;
Fast working speed;
Anti-fire performance roller up door;
Hydraulic cutting

  • HUAZHONG
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

uncoiler---feeding guide---roll forming---leveling---hydraulic cutting with servo motor---run out

TECHNICAL DETAILS

One-piece frame

Embedded hydraulic station: 4KW, 380V, 50/60 HZ, 3 Phase

Embedded electric cabinet: Delta PLC control system, Delta inverter

Cantilever console: Delta touch screen

Uncoiler: 2 Tons

Thickness: 0.8-1.0mm

Coil width:137mm (According to the profile type)

Forming stations: 28

Main motor power: 5.5KW*2, 380V, 50/60 HZ, 3 Phase

Cutting type: hydraulic cutting with servo motor

Punching Machine: 25 Tons

Forming speed: 12-15m/min

Forming speed (including punching): 8-10m/min

Drive type: gear transmission system

Cooling system

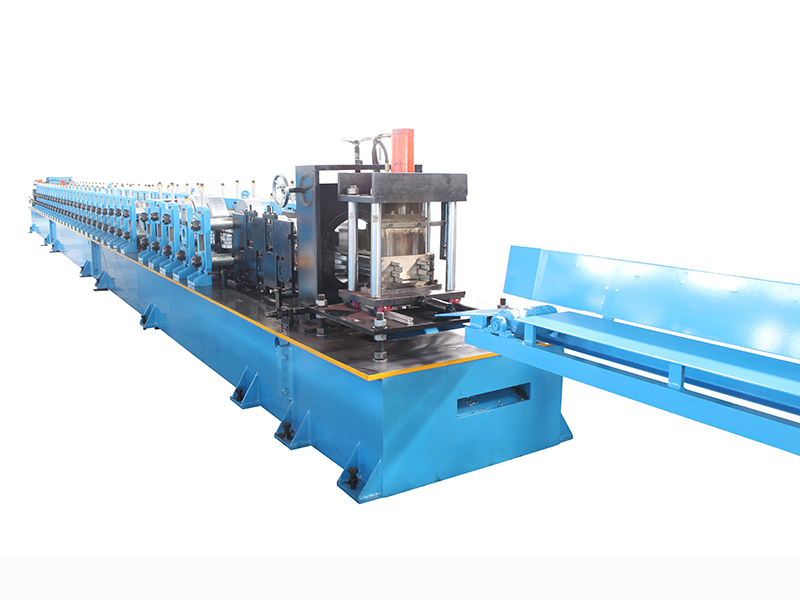

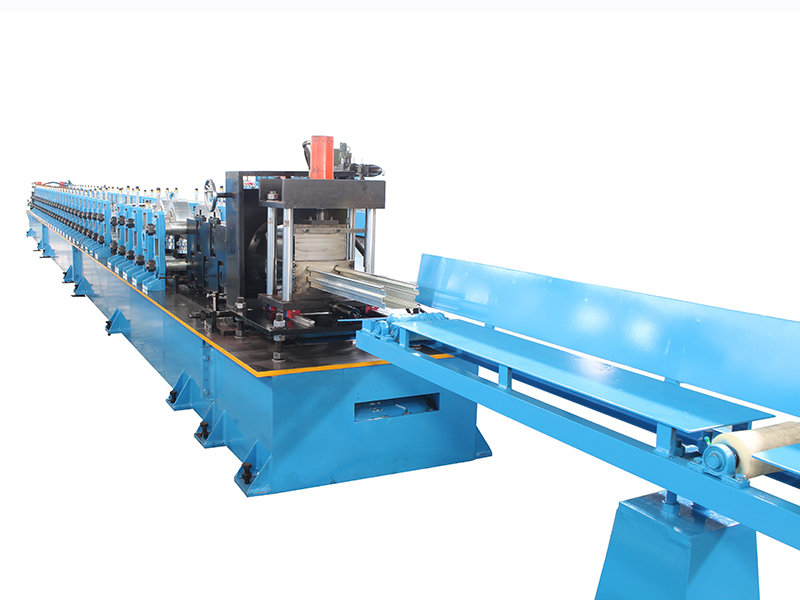

MACHINE PHOTOS

ANTI-FIRE ROLLER SHUTTER DOOR FORMING MACHINE-3
