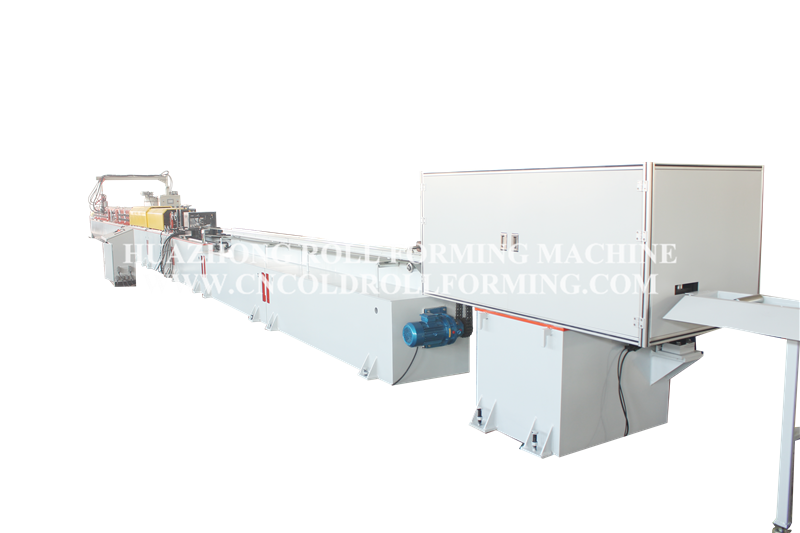

45 ROLLER SHUTTER SLAT ROLL FORMING MACHINE

Thickness: 0.18-0.23mm
Stations: 36
Cutting type:Fly saw cutting with servo motor
Transmission by helical gear
Working speed: 40m/min
  • HUAZHONG
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

Technical process:


Uncoiler---preheating platform---roll forming(with heating)---conveyor belt---hydraulic quick punching system


TECHNICAL DETAILS

45 roller shutter slat forming machine



Frame:one piece frame

Uncoiler:3 tons electric uncoiler

Forming station:36

Driving type:gear transmission

Main motor power:11kw*2

Hydraulic system:7.5kw

Electrical system:Delta control

Cutting type:fly saw cutting with servo motor

Material thickness:material:aluminium alloy,0.18-0.23mm

Material width:137mm

Forming speed:40m/min

Run out:6m run out table,200 rollers,Pneumatic tipping


MACHINE PHOTOS

45 roller shutter slat forming machine (14)45 roller shutter slat forming machine (13)
