T PROFILE TUBE ROLL FORMING MACHINE WITH LASER WELDING

Material thickness: 1.8-2.0mm, galvanized steel
Forming station: 22
Driving type: Gearbox universal joint transmission
Cutting type: Saw cutting with servo tracking

  • HUAZHONG

  • HUAZHONG

  • 8455229000

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Laer welding---saw cutting with servo motor---Run out table

TECHNICAL DETAILS

Frame: One-piece frame

Uncoiler: 3 Tons uncoiler with motor

Forming station: 22

Driving type: Gearbox universal joint transmission

Main motor power: 11KW*2,220/380V,50/60HZ,3 Phase

Electrical system: Delta external electric cabinet

Cutting type: Saw cutting with servo motor

Cooling system: Whole machine cooling

Material thickness: 1.8-2.0mm, galvanized steel

Forming speed:3 m/min

3KW laser welding

Run out:6m run out table

MACHINE PHOTOS

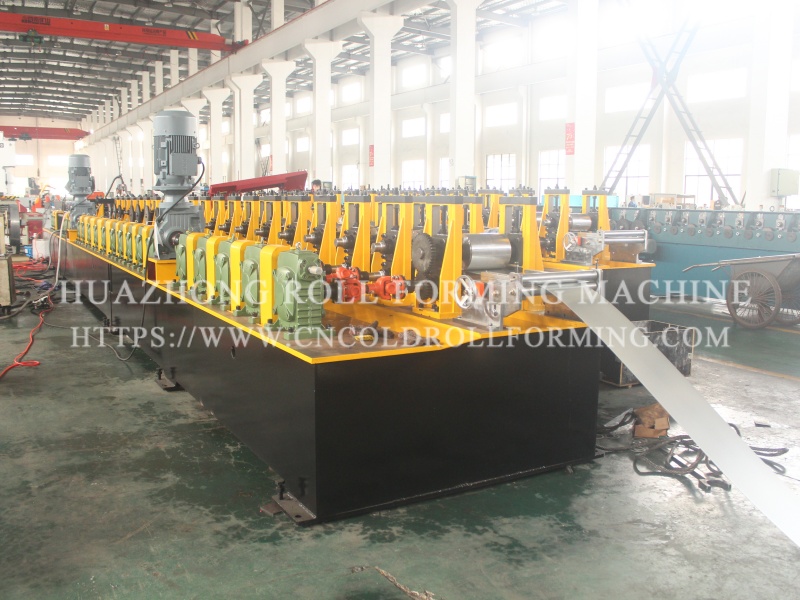

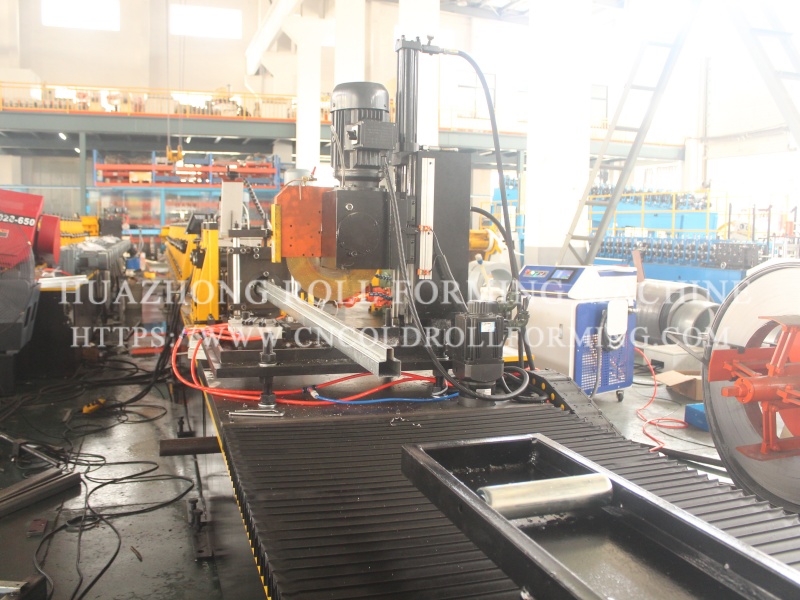

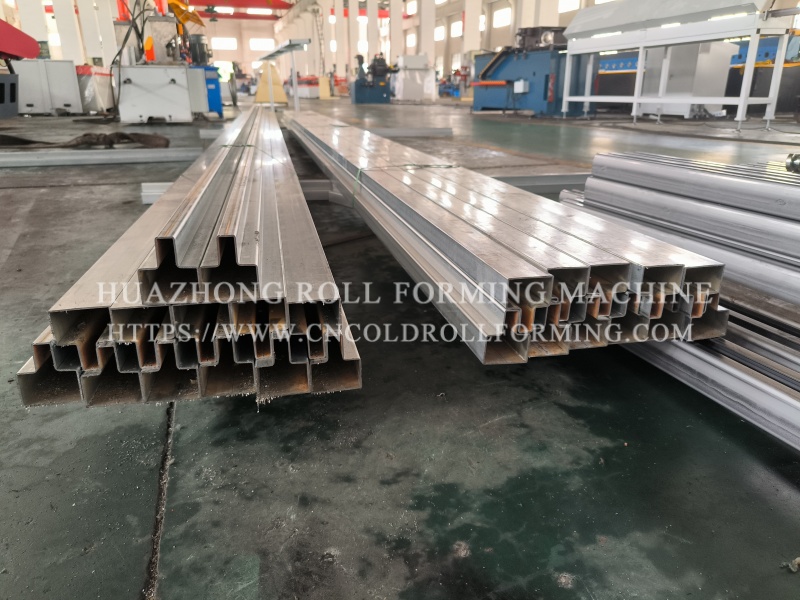

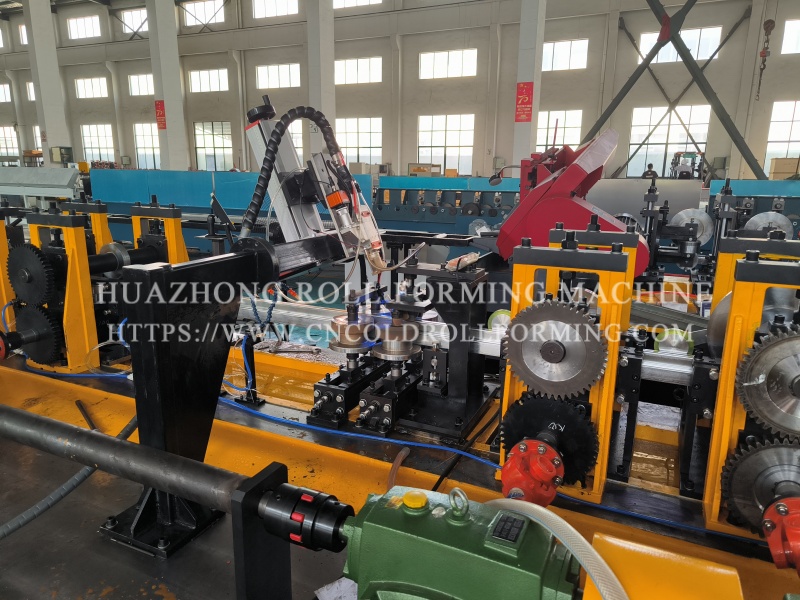

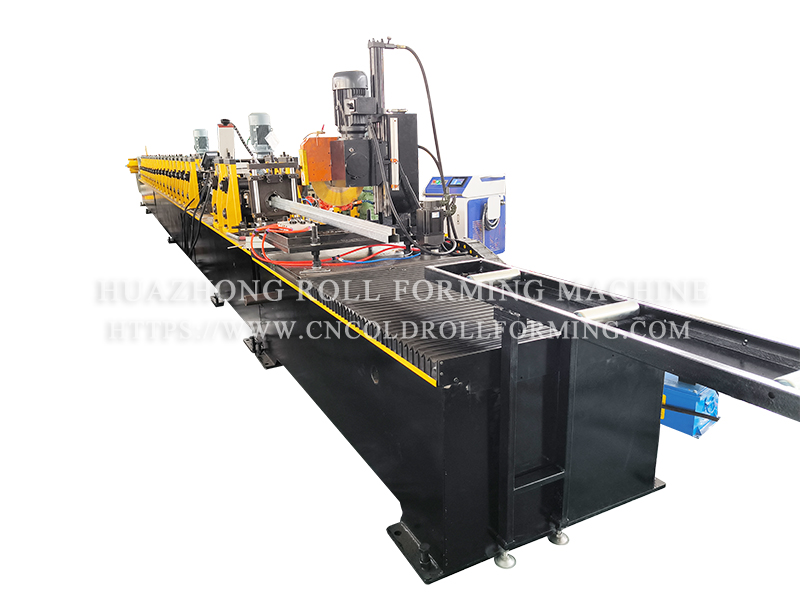

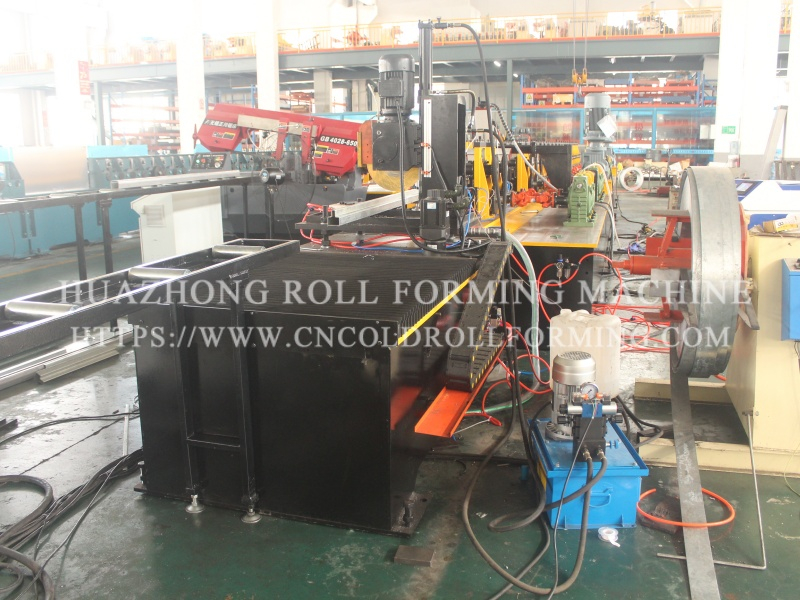

T tube roll forming machine (6)

T tube roll forming machine (3)T tube roll forming machine (2)
