STEEL BOX PLATE ROLL FORMING MACHINE

Frame:One-piece frame
Driving type: gear transmission
Cutting type:Hydraulic cutting
Material thickness:0.8-1.0mm
Forming speed:10-15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Leveling and servo feeding---Hydraulic punching---Roll forming---Hydraulic cutting---Run out table


TECHNICAL DETAILS

Frame:One-piece steel frame

Uncoiler: 10 tons hydraulic uncoiler with feeding car

Forming station: 20

Driving type: gear transmission

Main motor power: 7.5*2 kw

Hydraulic system: 5.5-7.5 kw

Electrical system: Delta

Cutting type: the host shutdown when hydraulic cutting

Punching system: Hydraulic punching

Material thickness: 0.8-1.0mm

Material width: 600-1250mm

Forming speed: 10-15m/min

Run out: 6m

MACHINE PHOTOS

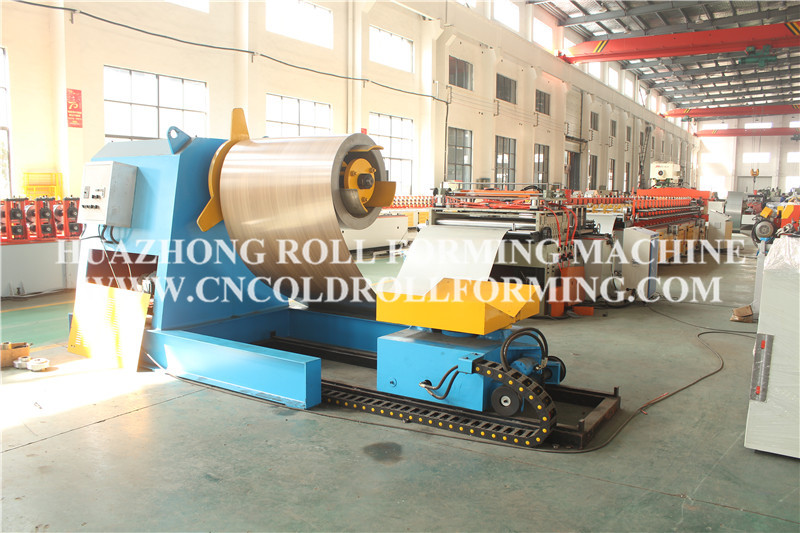

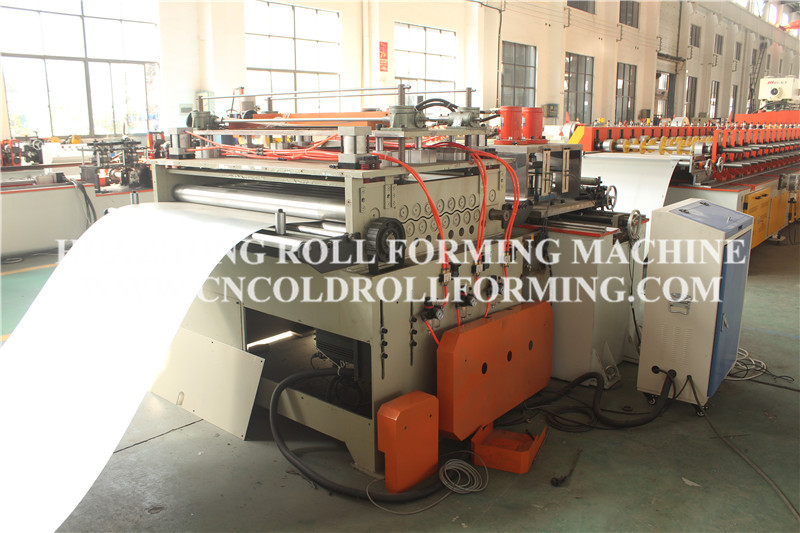

steel box plate roll forming machine (8)steel box plate roll forming machine (2)

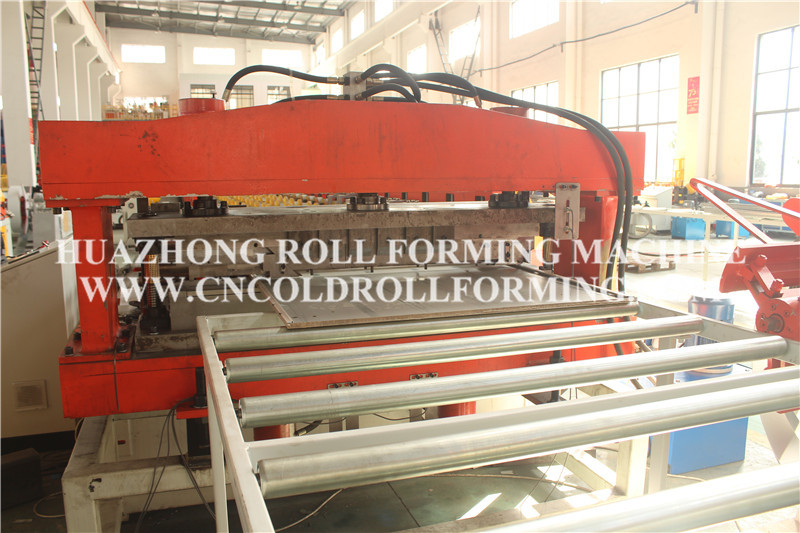

steel box plate roll forming machine (1)

VIDEO

FACTORY INFORMATION

客户照片1客户照片2

steel box plate roll forming machine steel box plate roll forming machinery steel box roll forming machine steel box roll forming machinery steel box roll forming equipment COLD ROLL FORMING MACHINE Cold roll forming machinery CUSTOMIZED ROLL FORMING MACHINE steel box plate roll forming equipment COLD ROLL FORMING EQUIPMENT
