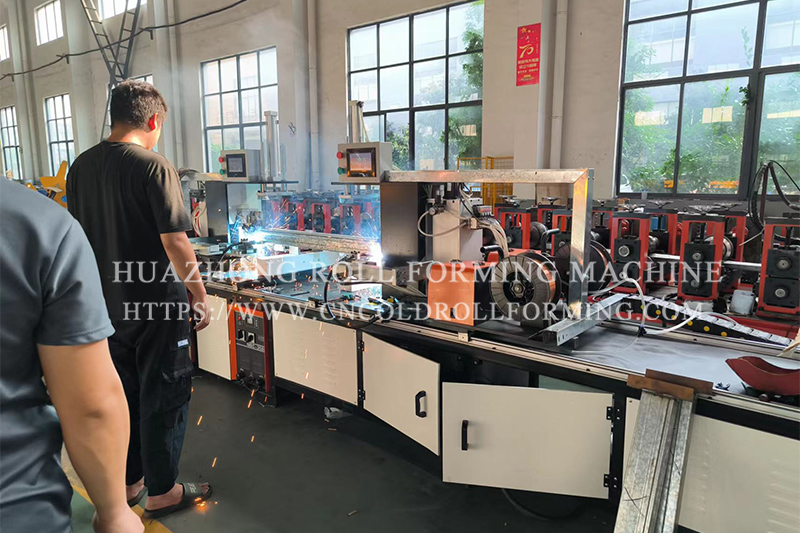

MACHINE PHOTOS
Weight: About 1200kgs |
Cross beam, weldable: 0-160mm |
Welding ability of crossbeam welding: crossbeam length: 800MM-4200MM |
Beam height: 50-160MM |
Beam width: 40-50mm |
P-beam:30✘50.40✘60.Two faces, three faces, and four faces can be welded on each side |
Suitable for mutual welding between materials with a thickness of 1.0-2.0mm and materials with a thickness of 2.0-3.5mm |
Specifications ranging from 50 * 40 to 80 * 50 ≥ 25 seconds per strip, specifications ranging from 100 * 50 to 120 * 50 ≥ 28 seconds per strip, specifications ranging from 140 * 50 to 160 * 50 ≥ 30 seconds per strip (excluding unilateral errors greater than 1.5) |
Discharge and start up---Automatic leveling and clamping---Automatic welding---Receiving material |
