STEEL SILO ROLL FORMING MACHINE LINE AND CURVING UNIT

Thickness: 1.0-1.5mm，Galvanized sheet
Forming stations:20
Cutting type: Hydraulic cutting
Drive type: gear transmission
Forming speed:16m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Hydraulic punching with servo motor---Curve---Hydraulic cutting---Pneumatic


TECHNICAL DETAILS

Frame: Iron plate welding

Uncoiler: 5 Tons electric

Forming station: 20

Driving type: Gear transmission

Main motor power: 15KW ,220/380V,50/60HZ,3 Phase

Hydraulic system: 7.5kw*3

Electrical system: Delta control system

Cutting type: Hydraulic cutting

Punching system: Hydraulic punching with servo motor

Cooling system: water cooling system

Material thickness: 1.0-1.5mm，Galvanized sheet

Forming speed: 16m/min

Run out: Pneumatic

MACHINE PHOTOS

Steel silo roll forming machine line & curving unit (3)

Steel silo roll forming machine line & curving unit (4)



VIDEO

FACTORY INFORMATION

客户

客户1

roll forming machine COLD ROLL FORMING MACHINE Custom Roll Forming Machine steel silo roll forming machine steel silo roll forming machinery steel silo roll forming equipment COLD ROLL FORMING EQUIPMENT CUSTOMIZED ROLL FORMING MACHINE customized roll forming machinery Cold roll forming machinery
Email to this supplier

Related Products

U PROFILE ROLL FORMING MACHINERY WITH PUNCHING
U PROFILE ROLL FORMING MACHINERY WITH PUNCHING
CUSTOMIZED TRACK ROLL FORMING MACHINE
CUSTOMIZED TRACK ROLL FORMING MACHINE
CUSTOMIZED RAIL PLATE ROLL FORMING MACHINE
CUSTOMIZED RAIL PLATE ROLL FORMING MACHINE

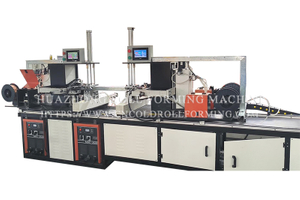

Welding Machine for Boxbeam
Welding Machine for Boxbeam
STEEL BOX PLATE ROLL FORMING MACHINE
STEEL BOX PLATE ROLL FORMING MACHINE
ANGLE ROLL FORMING MACHINE WITH PUNCHING
ANGLE ROLL FORMING MACHINE WITH PUNCHING
HIGH SPEED DOOR BOX FORMING MACHINE
HIGH SPEED DOOR BOX FORMING MACHINE
Steel S Type Cold Roll Forming Machine
Steel S Type Cold Roll Forming Machine
CUSTOMIZED STEEL ROLL FORMING MACHINERY
CUSTOMIZED STEEL ROLL FORMING MACHINERY
Single Wall Keel Roll Forming Machine
Single Wall Keel Roll Forming Machine
CUSTOMIZED STEEL ROLL FORMING MACHINE
CUSTOMIZED STEEL ROLL FORMING MACHINE
Solar Steel Frame Forming Machine
Solar Steel Frame Forming Machine

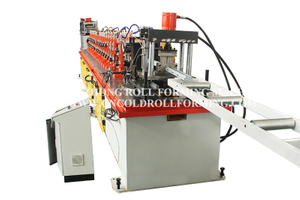

Customized Steel Frame Forming Machine
Customized Steel Frame Forming Machine
Three-in-one hydraulic uncoiler with servo feeding system
Three-in-one hydraulic uncoiler with servo feeding system
Roll forming machine for aluminum frame of screen window
Roll forming machine for aluminum frame of screen window

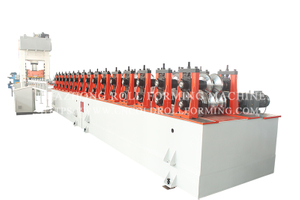

THREE WAVE GUARD RAILS ROLL FORMING MACHINE
