STAINLESS TRACK ROLL FORMING MACHINE

Thickness: 3 mm
Forming stations: 16
Cutting type: Hydraulic disk saw cutting
Drive type: heavy gear transmission
Forming speed:10-15m/min

  • HUAZHONG
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

Uncoiler---5-ROLL leveling---Roll forming---Hydraulic disk saw cutting with servo motor---Run out table

TECHNICAL DETAILS

Frame: One-piece steel frame

Uncoiler: 3 Tons

Forming station: 16

Driving type: heavy gear transmission

Main motor power: 18.5KW*2,220/380V,50/60HZ,3 Phase,OMT

Electrical system: Delta control system

Cutting type: Hydraulic disk saw cutting with servo motor

Cooling system: water cooling system

Material thickness: 3.0mm,304/201 stainless steel

Forming speed: 10-15m/min

Run out: 6m

Welding equipment6m automatic conveying - automatic spot welding belt PLC control - automatic conveying and discharging

Rail bender: automatic arc bending after welding of two layers of track

MACHINE PHOTOS

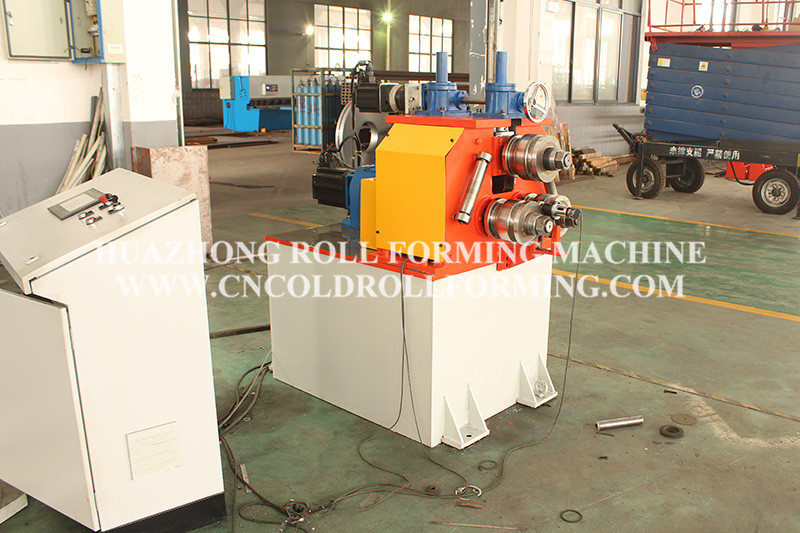

stainless steel track roll forming machine (4)

stainless steel track roll forming machine (7)

stainless steel track roll forming machine (8)

stainless steel track roll forming machine (9)
