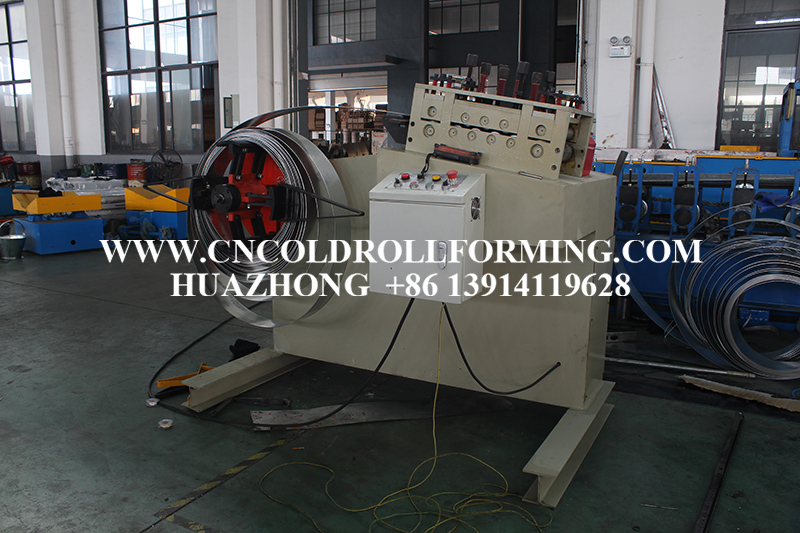

ELECTRIC FRAME ROLL FORMING MACHINE

Thickness: 2.8mm Galvanized sheet
Forming station: 16
Cutting type:Hydraulic shutdown cut off
Drive type: gear transmission system
Forming speed: 15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Punching---Roll forming---Hydraulic shutdown cut off---Run out table


TECHNICAL DETAILS

Frame: One-piece frame

External hydraulic station: 11KW, 380V, 50HZ, 3Phase

Electric cabinet: Yaskawa motion control system

Cantilever console: Foxconn touch screen

Uncoiler: 5 Tons

Thickness: 2.8mm Galvanized sheet

Coil width: 130mm (According to the profile type)

Forming station: 16

Main motor power: 7.5KW*2, 380V, 50HZ, 3Phase

Cutting type: Hydraulic shutdown cut off

Forming speed: 15m/min

Drive type: gear transmission system


MACHINE PHOTOS

electric frame roll forming machine (2)


electric frame roll forming machine (5)
