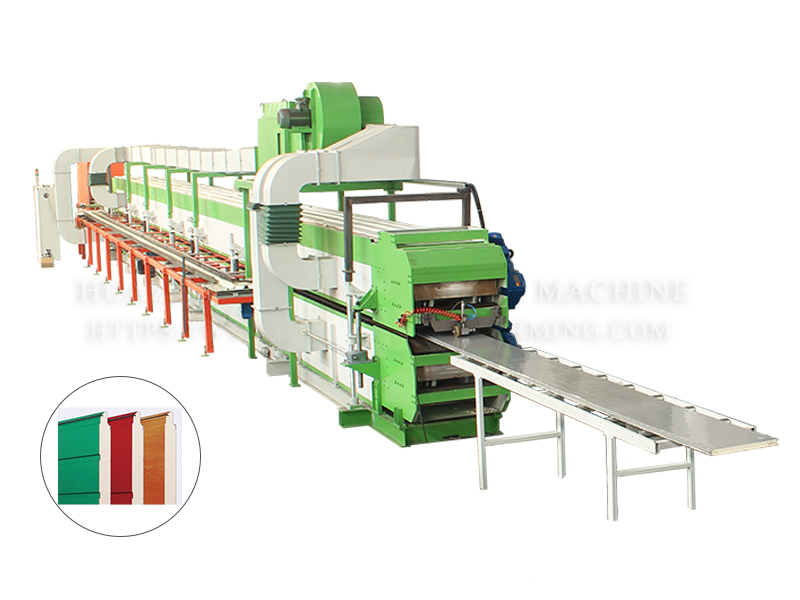

GARAGE DOOR PRODUCTION LINE

One-piece frame;
Gear transmission
High precision;
Hydraulic cutting;
Germany COPRA software for professional roller design.

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

uncoiler---embossing---servo feeding---hydraulic press square mould---conveying---roll forming---run out table

TECHNICAL DETAILS

MATERIAL: Galvanized steel/Aluminum steel

THICKNESS:0.3-0.5mm
WIDTH:500-700mm
DOOR PANEL SPECIFICATION
WIDTH:400-600mmADJU STABLE
PANEL THICKNESS:40mm/50mm CUSTOMIZED
LENGTH:2000mm-12000mm CAN BE SETTING
MACHINE TECHNICAL PARAMETER
SPEED:8-10m/min CONTROLLED BY INVERTER
LENGTH OF COMBINED CONVEYOR:6-10m
TOTAL POWER:40Kw
OVERALL DIMENSION:35m×3m×4m FULL LINE
WORKSHOP DIMENSION:50m×8m×7m 5T BREDGE CRANE IS REQUIRED

AUTOMATICALLY CHANGE THE WIDTH OF PANEL

MACHINE PHOTOS

automatic production line for garage door (14)

automatic production line for garage door (12)

automatic production line for garage door (10)
