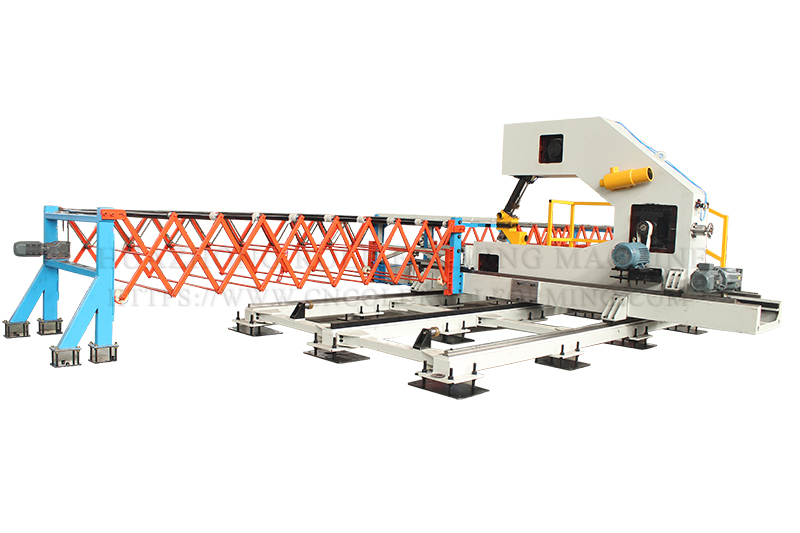

Automatic Garage Door Band Saw Cutting with Servo motor

This machine consists of machine seat, longitudinal moving mechanism, cutting machine and vacuum suction device. The longitudinal moving frame is mounted on the seat straight guide rail, Through the motor, reducer and wire rod drive to realize the longitudinal movement frame and lamination machine longitudinal synchronous movement and quickly return to the original position after completing the plate cutting.

Main technical parameter:

Working table height                                       1200mm

Longitudinal maximum movement speed                       12m/min

Maximum lateral movement speed                            10m/min

Maximum longitudinal movement distance                      1200mm

Maximum lateral movement distance                          900mm

Saw knife line speed                                        1800mm/s

Saw knife power                                           3kw

Tighten the cylinder                                        Φ63*175*4

Measure the length of the way                               Encoder measuring length

Length accuracy                                           +1 mm
