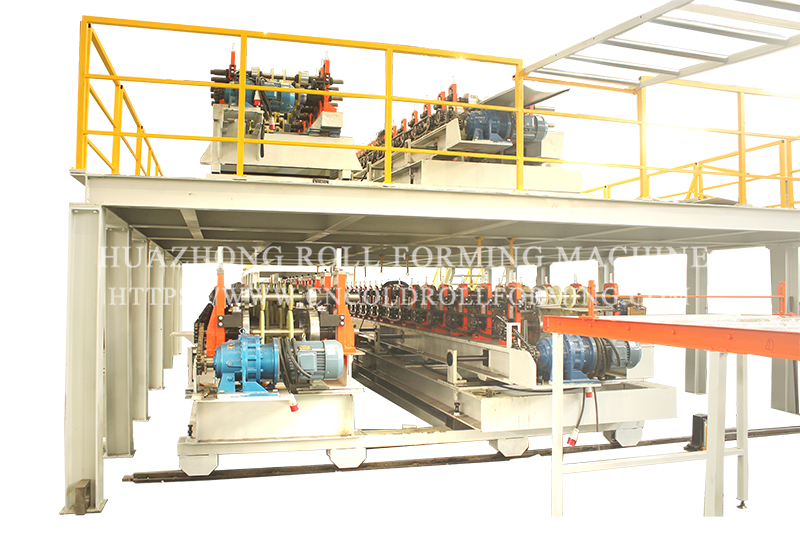

AUTOMATIC GARAGE DOOR ROLL FORMING MACHINE

One-piece frame;
chain transmission
High precision;
Hydraulic cutting;
Germany COPRA software for professional roller design.

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

uncoiler---embossing---servo feeding---hydraulic press square mould---conveying---roll forming---run out table

TECHNICAL DETAILS

MATERIAL: Galvanized steel/Aluminum steel

THICKNESS:0.3-0.5mm
WIDTH:500-700mm
DOOR PANEL SPECIFICATION
WIDTH:400-600mmADJU STABLE
PANEL THICKNESS:40mm/50mm CUSTOMIZED
LENGTH:2000mm-12000mm CAN BE SETTING
MACHINE TECHNICAL PARAMETER
SPEED:8-10m/min CONTROLLED BY INVERTER
LENGTH OF COMBINED CONVEYOR:6-10m
TOTAL POWER:40Kw
OVERALL DIMENSION:35m×3m×4m FULL LINE
WORKSHOP DIMENSION:50m×8m×7m 5T BREDGE CRANE IS REQUIRED

AUTOMATICALLY CHANGE THE WIDTH OF PANEL

MACHINE PHOTOS

Automatic garage door roll forming machine (6)

Automatic garage door roll forming machine (5)

Automatic garage door roll forming machine (2)

VIDEO

FACTORY INFORMATION

客户照片1客户照片2

SINGLE PANEL LINE ROLL FORMING MACHINE SKIN LINE ROLL FORMING MACHINE AUTOMATIC SECTIONAL GARAGE DOOR PANEL SECTIONAL GARAGE DOOR PRODUCTION LINE garage door forming machine automatic garage door roll forming machine GARAGE DOOR ROLL FORMING MACHINE garage door roll forming machinery GARAGE DOOR ROLL FORMING EQUIPMENT COLD ROLL FORMING MACHINE
Email to this supplier

Related Products

Automatic Garage Door Band Saw Cutting with Servo motor
Automatic Garage Door Band Saw Cutting with Servo motor
GARAGE DOOR PRODUCTION LINE
GARAGE DOOR PRODUCTION LINE
END CAPS ROLL FORMING MACHINE
END CAPS ROLL FORMING MACHINE

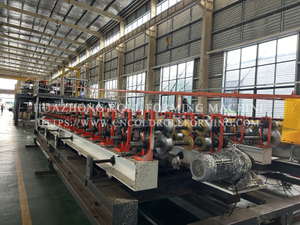

SECTIONAL GARAGE DOOR ROLL FORMING MACHINE
