U AND ARC PROFILE TRACK ROLL FORMING MACHINE

Thickness:2.0-2.5mm
Forming station: 12
Cutting type:Hydraulic cutting
Drive type: gear transmission system
Forming speed: 15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Hydraulic punching---Hydraulic cutting---Run out table



TECHNICAL DETAILS

Frame: One-piece frame

Uncoiler: 3 Tons

Forming station: 12

Driving type: gear transmission

Main motor power: 15kw

Hydraulic system: 5.5kw

Electrical system: Delta control

Cutting type: Hydraulic cutting

Punching system: U profile has punching, flat punching

Material thickness: DX51D galvanized sheet,thickness: 2.0-2.5mm

Forming speed: 15m/min

Run out: 6 meter run out table


MACHINE PHOTOS

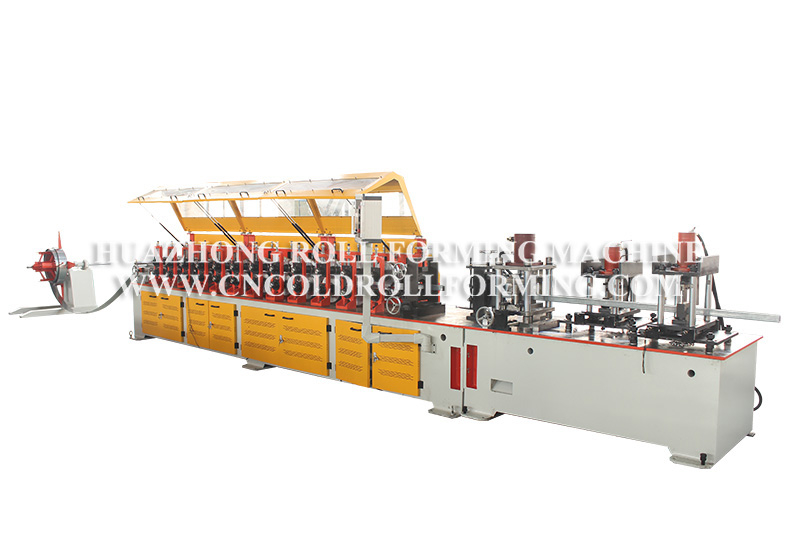

U and arc profile track roll forming machine (1)

U and arc profile track roll forming machine (3)
