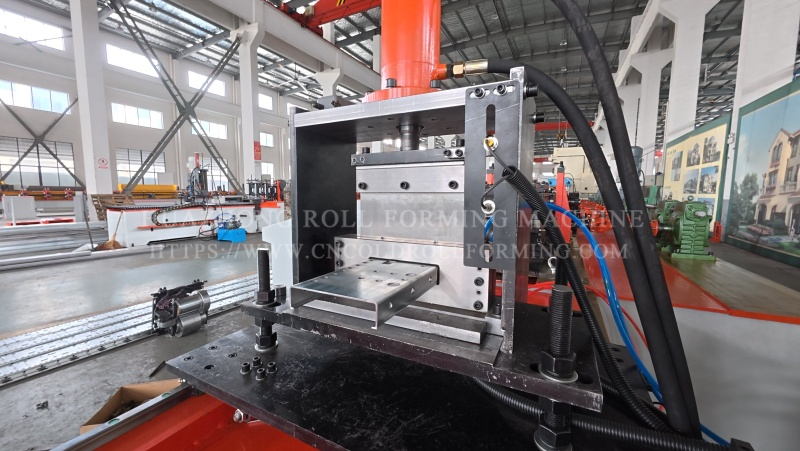

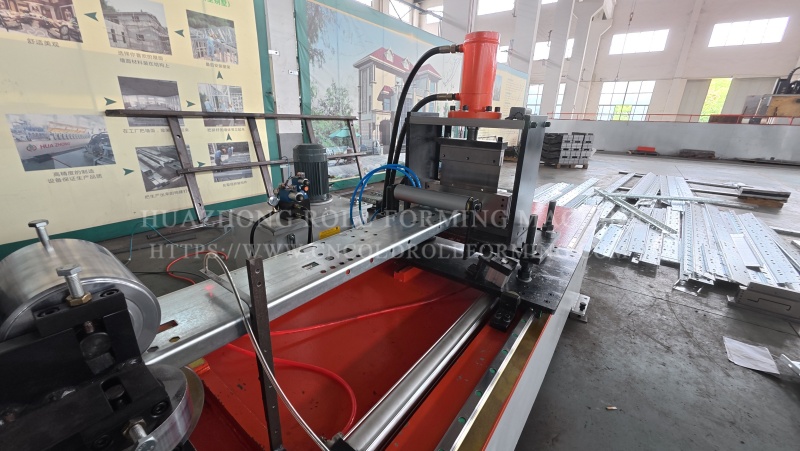

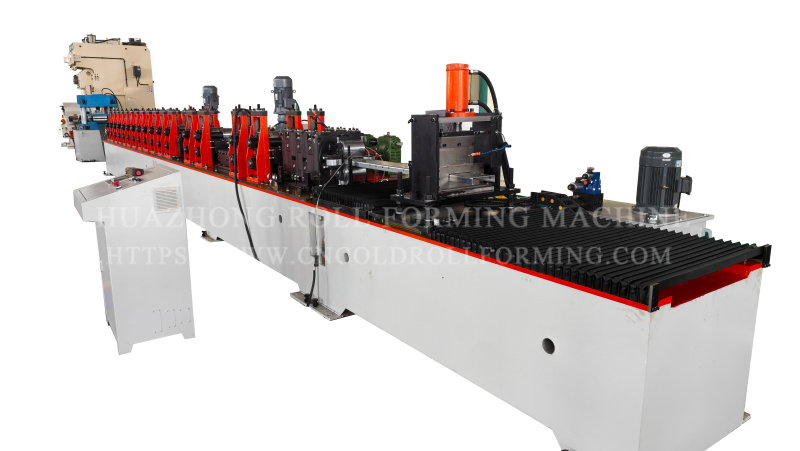

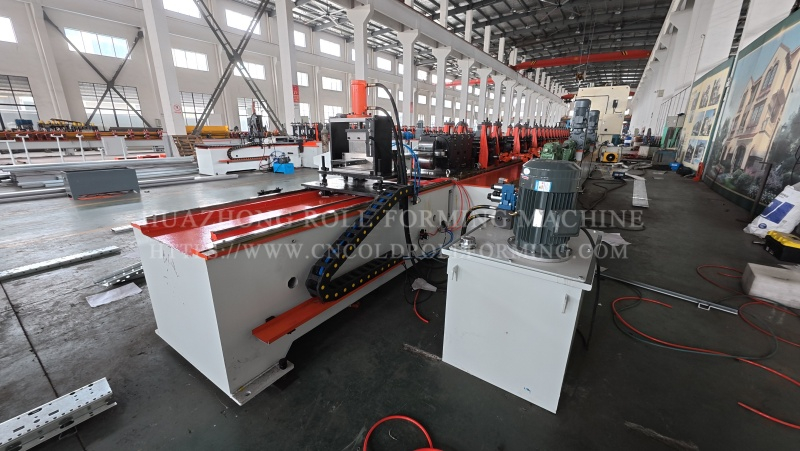

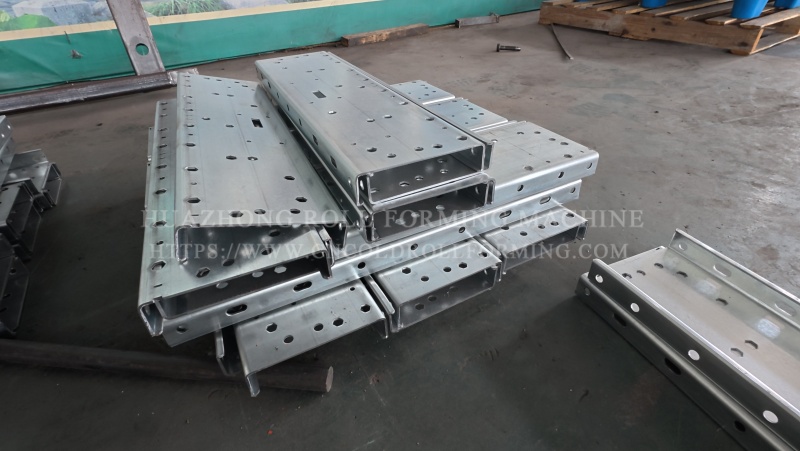

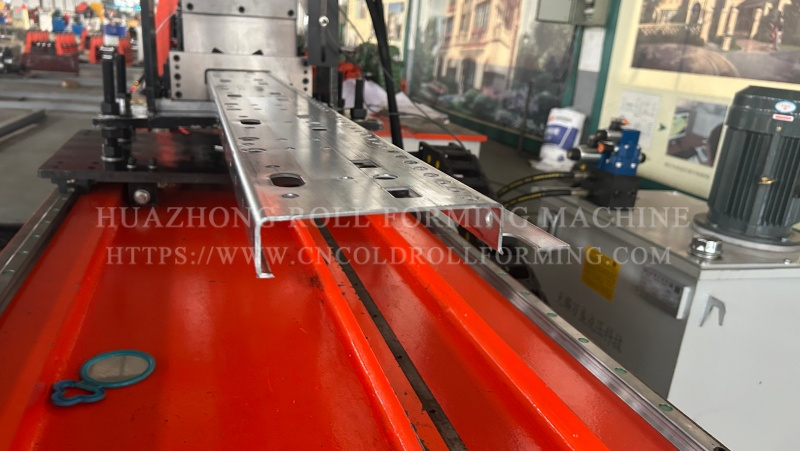

C CHANNEL ROLL FORMING MACHINE WITH OMEGA QUICK CHANGE SYSTEM

Thickness: 0.5-0.8mm
Forming stations: 16
Cutting type: Hydraulic cutting
Drive type: gearbox transmission
Forming speed: 8-15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Hydraulic cutting---Run out table

TECHNICAL DETAILS

Frame: One-piece frame

Uncoiler: 3 Tons uncoiler with leveling

Forming station: 16

Driving type: gearbox transmission

Main motor power: 4/5.5KW ,220/380V,50/60HZ,3 Phase

160 tons punching machine

Hydraulic punching

Hydraulic system: 4kw

Electrical system: Delta control system

Cutting type: Hydraulic cutting

Material thickness: 0.5-0.8mm，Galvanized sheet

Forming speed: 10-12m/min

Run out: 6m

MACHINE PHOTOS

C channel roll forming machine (4)

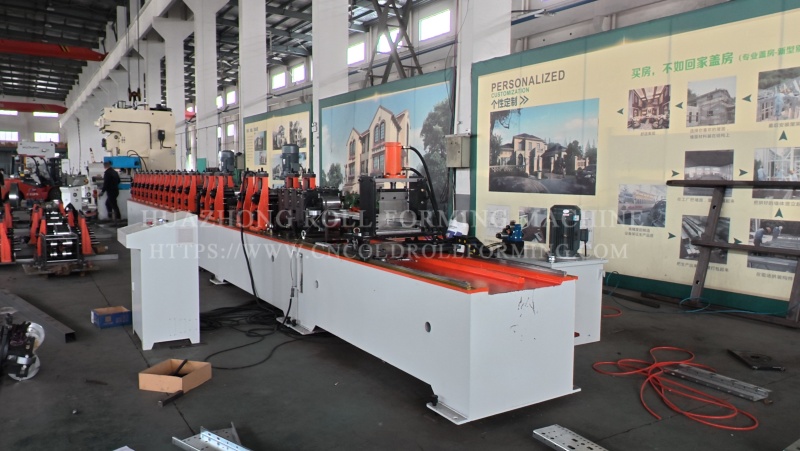

C channel roll forming machine (6)C channel roll forming machine (2)
