SOLAR POST ROLL FORMING MACHINEY

Thickness: 2.0-2.75mm
Forming stations: 26
Cutting type: Hydraulic cutting with servo motor
Drive type: gear rack transmission system
Forming speed: 20-25m/min

  • HZ

  • HZ

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Technical process:

Uncoiler --- Feeding guide---Roll forming---Hydraulic cutting with servo motor---run out table

TECHNICAL DETAILS

Solar post roll forming machine



Frame:One piece frame

Uncoiler:3 tons electric uncoiler

Forming station:26

Driving type:gear transmission

Main motor power:15*2kw

Cutting type:Hydraulic cutting with servo motor,gear rack transmission

Cooling system, One nozzle per 4 channels

Material thickness:Black Belt Q235B & Galvanized 275 ;2.0-2.5mm

Forming speed:30m/min

Run out:7.5m horizontal push pneumatic discharge platform with slope

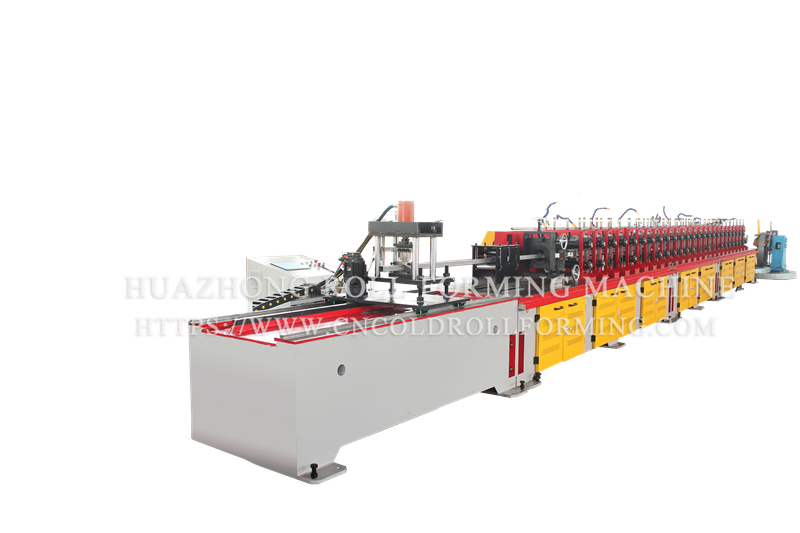

MACHINE PHOTOS

Solar post roll forming machine (4)Solar post roll forming machine (1)Solar post roll forming machine (5)
