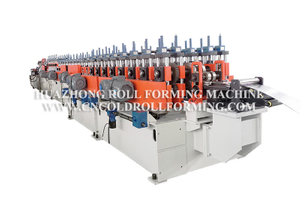

HZ SOLAR POST ROLL FORMING MACHINE

Thickness: 1.5mm
Forming stations: 26
Cutting type: hydraulic cutting with servo motor
Drive type: gear transmission system
Forming speed: 10-12m/min
  • HZ

  • HZ

  • 8455229090

Availability:

PRODUCT DESCRIPTION

Uncoiler---feeding Guide---Roll forming---Hudraulic cutting with servo motor---Run out table

TECHNICAL DETAILS

Uncoiler:8 Tons

Embedded hydraulic station:11KW, 380V, 50/60HZ, 3 Phase

Embedded electric cabinet: Delta PLC control system

Cantilever console: Delta touch screen

Thickness: 1.5mm

Coil width:280mm(According to the profile type)

Forming stations: 26

Main motor power: 15KW, 380V, 50/60HZ, 3 Phase

Cutting type: hydraulic cutting with servo motor

Forming speed: 10-12m/min

Drive type: gear transmission system

Cooling system

MACHINE PHOTOS

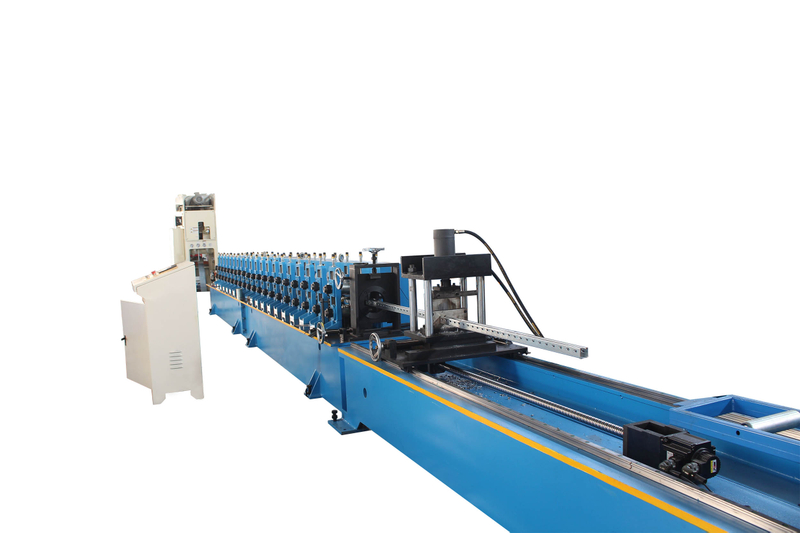

solar post roll forming machine-4

solar post roll forming machine-3
