SOLAR POST ROLL FORMING MACHINE (ADJUST WIDTH AUTOMATICALLY)

Thickness: 2.5-2.75mm
Forming stations: 28
Cutting type: Hydraulic disk saw cutting with servo motor
Drive type: gear transmission system
Forming speed: 20-25m/min
  • HZ
  • HZ
  • 8455229090

PRODUCT DESCRIPTION

Uncoiler--- Feeding guide--- Hydraulic cutting with servo motor---Run out table

TECHNICAL DETAILS

Uncoiler: 3 Tons

Forming stations: 28

Cantilever console: Delta touch screen

Coil width: 41*52mm/ 41*62mm/41*72mm/41*82mm

Thickness: 2.5-2.75mm

Main motor power: 11KW, 380V, 50/60 HZ, 3 Phase

Motor reducer drive

Cutting type: Hydraulic disk saw cutting with servo motor

Forming speed: 20-25m/min

Drive type: gear transmission system

Servo pull the ball screw to adjust the height automatically

Lubricating cooling system

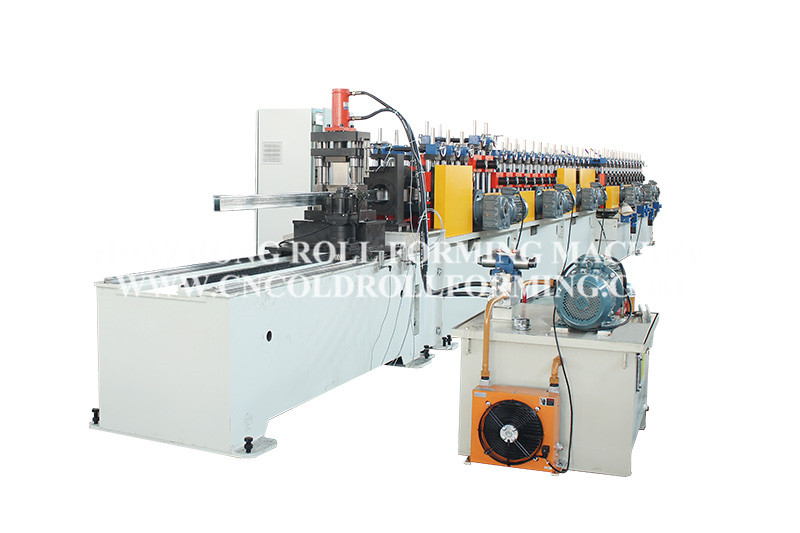

MACHINE PHOTOS

solar post roll forming machine (2)

solar post roll forming machine (4)

solar post roll forming machine (6)

solar post roll forming machine (7)

Solar post roll forming machine
