HUAZHONG ROOF PANEL ROLL FORMING MACHINE

Thickness: 0.8-2.5mm
Forming stations: 18
Hydraulic cutting
Drive type: chain transmission system
Forming speed: 12-15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---feeding guide---roll forming---hydraulic die cutting---run out table

TECHNICAL DETAILS

Uncoiler: 5 Tons/manual

Hydraulic cutting

PLC automatic control system

Run out table

Thickness: 0.8-2.5mm

Coil width: 800-1250mm(according to the profile type)

Forming stations: 18

Main motor power: 7.5KW

Hydraulic power: 4KW

Forming speed: 12-15m/min

Drive type: chain transmission system

MACHINE PHOTOS

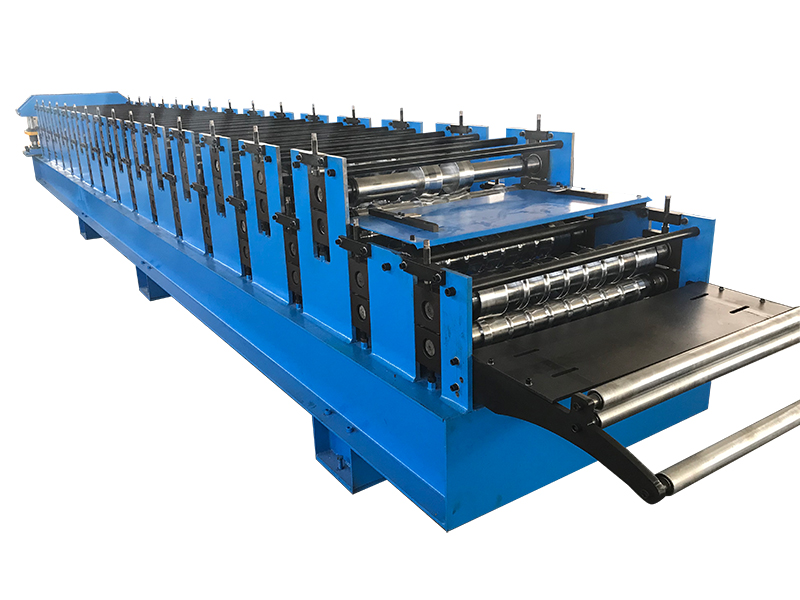

roof panel roll forming machine-1
