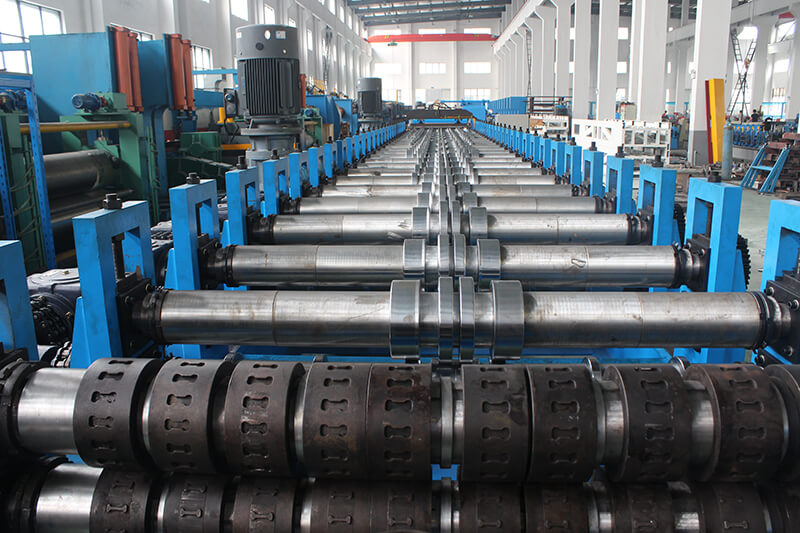

DECKING FLOOR ROLL FORMING MACHINE

Uncoiler---feeding guide---roll forming---hydraulic die cutting---run out table

Uncoiler: 5 Tons/manual

Hydraulic cutting

PLC automatic control system

Run out table

Thickness: 0.8-1.0mm

Coil width: 800-1250mm( according to the profile type)

Drive type: gear box with universal joint transmission system/chain transmission system

Forming stations: 20

Main motor power: 7.5KW

Hydraulic power: 4KW

Forming speed: 12-15m/min
