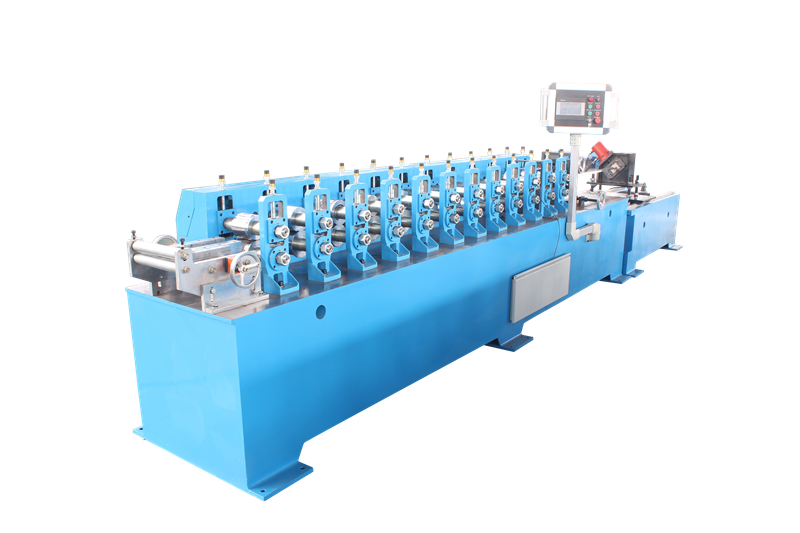

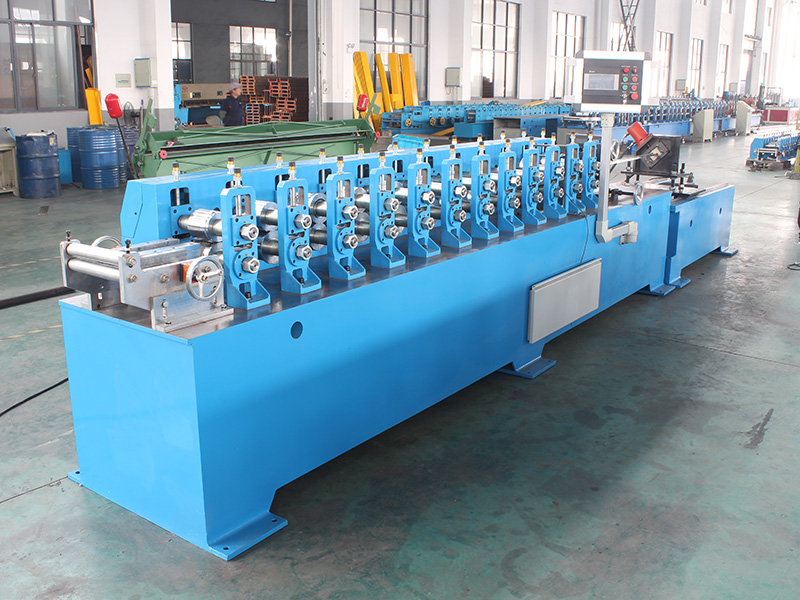

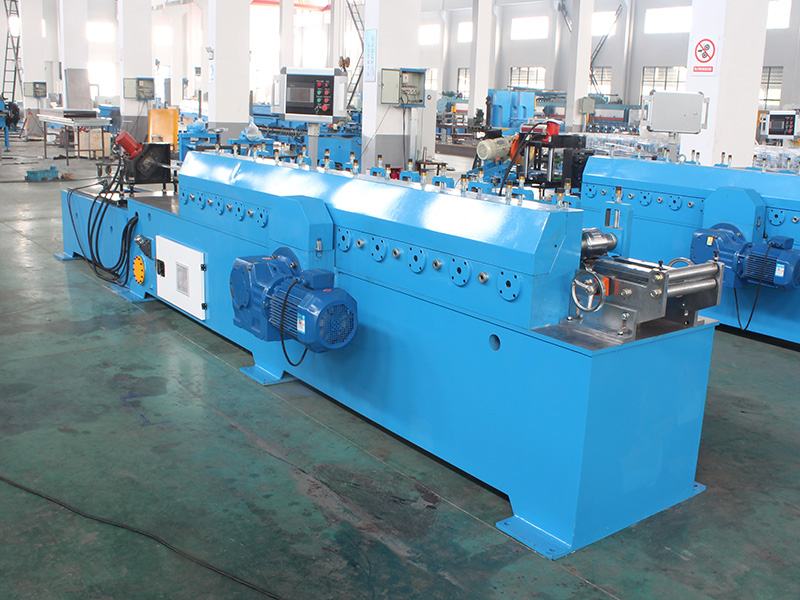

C/U ROLL FORMING MACHINE

One-piece frame;
Hydraulic cutting with servo motor;
High precision;
Cooling system;
Professional roller design software-Germany COPRA.

  • HUAZHONG
  • HUAZHONG
  • 8455229090

Product Description

Uncoiler---Feeding guide---Roll forming---Fly saw cutting---Run out

Technical Details

One-piece frame

Embedded hydraulic station: 4KW, 380V, 50/60 HZ, 3 Phase

Embedded electric cabinet: Delta PLC control system, Delta inverter

Cantilever console: Delta touch screen

Uncoiler: 2 Tons

Thickness: 0.8-1.0mm

Coil width:137mm (According to the profile type)

Forming stations: 12

Main motor power: 5.5KW, 380V, 50/60 HZ, 3 Phase

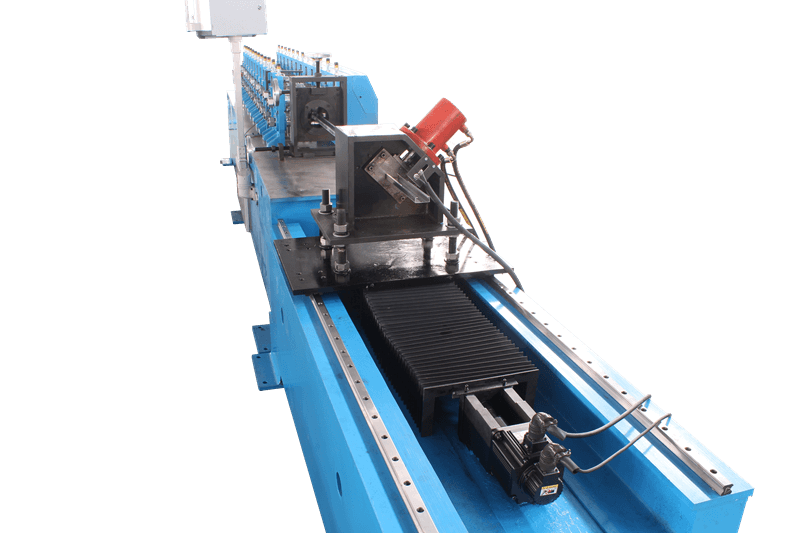

Cutting type: hydraulic cutting with servo motor

Punching Machine: 25 Tons

Forming speed: 12-15m/min

Forming speed (including punching): 8-10m/min

Drive type: gear transmission system

Cooling system

Machine Products

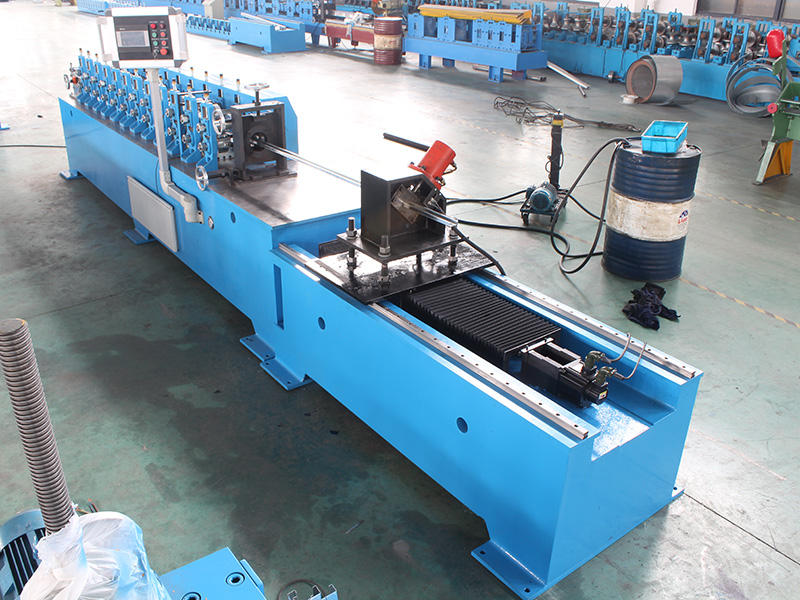

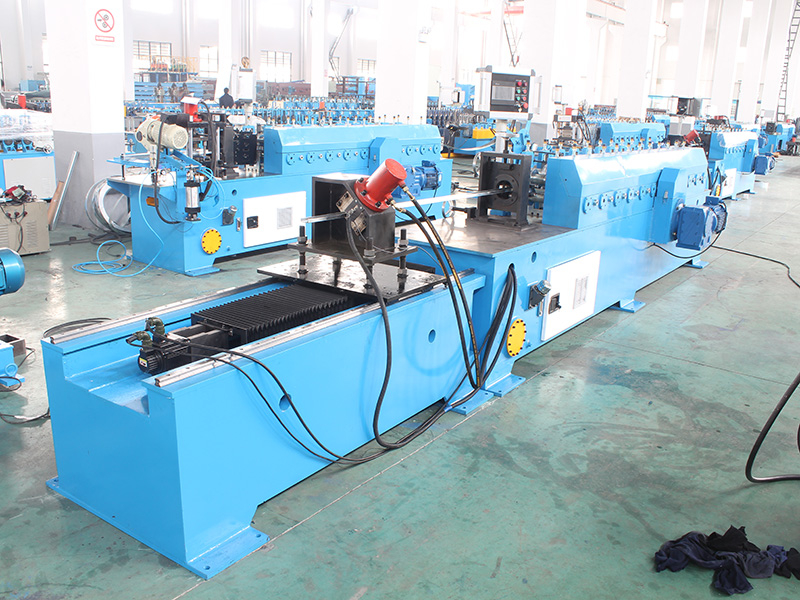

CU roll forming machine-2CU roll forming machine-5
