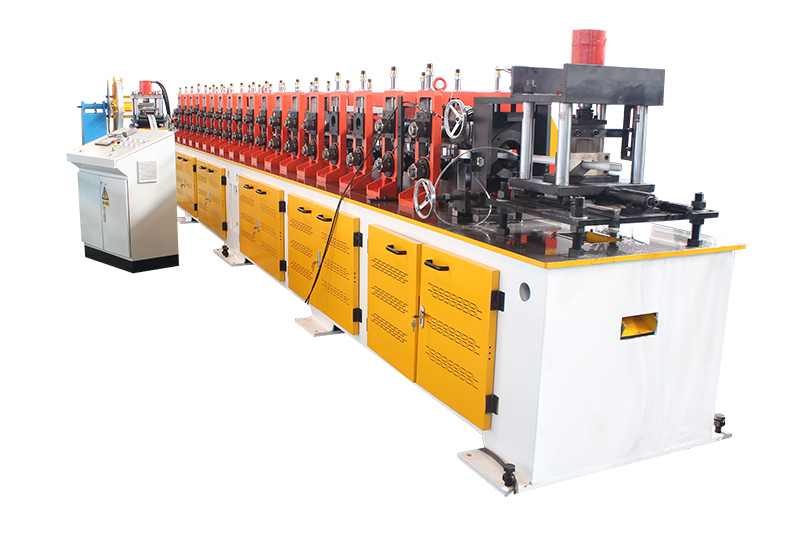

C GUIDE ROLL FORMING MACHINE

Thickness: 2.0mm Galvanized sheet
Forming station: 18
Cutting type: Hydraulic shutdown cut off
Drive type: gear transmission system
Forming speed: 16m/min
  • HUAZHONG
  • HUAZHONG
  • 8455229090
Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Punching---Roll forming---Hydraulic cutting---Run out table



TECHNICAL DETAILS

Frame: One-piece frame

External hydraulic station: 11KW, 380V, 50HZ, 3Phase

Hydraulic cabinet: Delta PLC control system, Delta inverter

Cantilever console:  Delta touch screen

Uncoiler: 3 Tons

Thickness: 2.00mm Galvanized sheet

Coil width: 104mm(According to the profile type)

Forming station: 18

Main motor power: 5.5KW*2, 380V, 50HZ, 3Phase

Cutting type: Hydraulic shutdown cut off

Forming speed: 16m/min

Drive type: gear transmission system


MACHINE PHOTOS

C guide roll forming machine (2)

C guide roll forming machine (6)

C guide roll forming machine (8)
