PRODUCT DESCRIPTION
Processing layout
Uncoiler---Feeding Guide--- Dimple --- Bolthole --- Rounded --- Lipcut --- Webnotch --- Servicehole ---Roll Forming---Hydraulic Swage ---Hydraulic Cutting---Run Out
TECHNICAL DETAILS
Uncoiler: 3 Tons
Forming stations: 12
Thickness:0.8mm
Main motor power: 5.5KW
Cutting type: hydraulic cutting
Motion controller system
High speed punching system
High speed swage system
High speed cutting system
3D house building software (with machine)
Run out table
Drive type: gear transmission system
Cooling system
Production Description
The design software of huazhong roll forming light gauge steel structure:
Combines analysis, design and detailed picture as a whole one and is able to finish the 3D design and 3D modeling of the frame, wall and floor layout of the whole building in a few minutes, and directly generates CAM and CNC digital operation instructions.
The equipment of huazhong roll forming light gauge steel structure:
Tailored to customer needs and assembles flexibly, high precision and superior user experience, can produce various types of C and U-shaped sections flexibly.

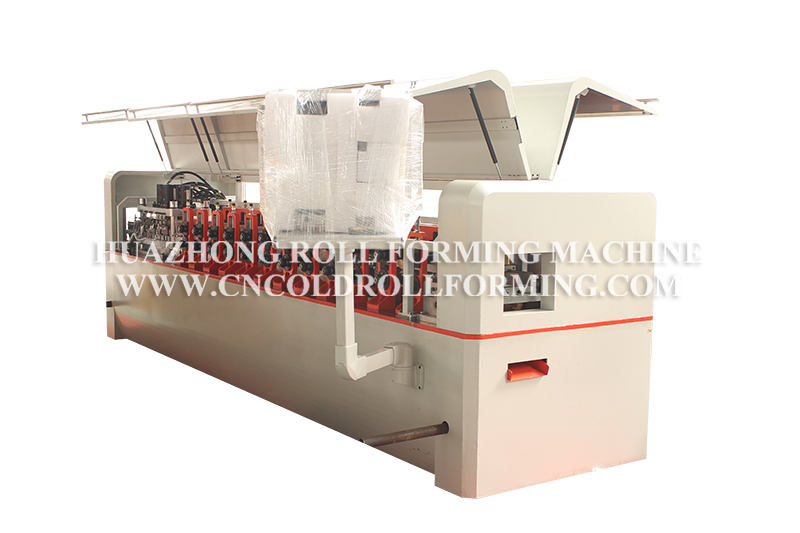

MACHINE PHOTOS
| Un-coiler | |
 | |
Capacity | 3 tons |
Material | #45 steel quenched |
Power | 2.2KW, 3 Phases, 380V, 50HZ |
Method of open and close of segments | manual |
Inner diameter of coil | ø508 |
Maximum outer diameter of coil | ø1,300 |
Feeding speed | 25m/min(transducer control) |
Main roll former | |
Stations | 12 |
Rollers material | CR 15 |
Bearing brand | FAG Germany |
Main motor | 7.5KW |
| Transmission by gear | |
Station material | cast steel |
| Machine is equipped with cooling system | |
| Newly upgraded one-piece frame machine | |
| Main parameter | |
 | |
Section size | 89*41mm |
Coil thickness | 0.75-1/2mm (galvanized plate/aluminum zinc plate) |
Coil width | 183mm |
Standard working speed | 300-700m/h |
Maximum working speed | 1200m/h |
Main motor power | 7.5kw |
Electricity | 3 phases 380V, 50HZ |
Hydraulic motor power | 7.5KW |
Capacity of hydraulic oil tank | 200L |
Hydraulic pressure adjustment | automatic control, computer monitor |
Main motor wireless remote control | standard |
Punching model for frame and truss | dimples screw hole, chamfering, the web through hole, small edge shear, pipeline hole, reducing web, shear, the web foundation hole |
| Product accuracy | ±0.5mm |
Code machine | standard |
Machine size | 4900*1000*1500mm |
Machine weight | 5000kg |
Machine color | according to customer |
| PLC control cabinet(Huazhong CAD LGS maker numerical control system) |
 |
| With independent intellectual property rights and leading technology in the industry, our HuazhongCAD LGS maker numerical control system is equipped with professional industrial-grade computer to ensure the stable performance of the software system in any working environment. Foxconn brand Super 17 inches professional industrial-grade computer, can choose to operate by keyboard, mouse or touch screen, and can switch between manual and automatic. Extract output data from the software and realize gapless link between design and production without human intervention. |
