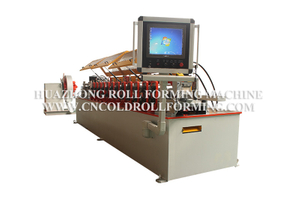

LIGHT GAUGE STEEL ROLL FORMING MACHINE

Thickness:0.8mm
Forming stations: 12
Cutting type: hydraulic cutting
Drive type: gear transmission system
3D house building software (with machine)

  • HUAZHONG
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

Processing layout

Uncoiler---Feeding Guide--- Dimple --- Bolthole --- Rounded --- Lipcut --- Webnotch --- Servicehole ---Roll Forming---Hydraulic Swage ---Hydraulic Cutting---Run Out

machine layout.png

TECHNICAL DETAILS

Uncoiler: 2 Tons

Forming stations: 12

Thickness:0.8mm

Main motor power: 5.5KW

Cutting type: hydraulic cutting

Motion controller system

High speed punching system

High speed swage system

High speed cutting system

3D house building software (with machine)

Run out table

Drive type: gear transmission system

Cooling system


Production Description

The design software of huazhong roll forming light gauge steel structure:

Combines analysis, design and detailed picture as a whole one and is able to finish the 3D design and 3D modeling of the frame, wall and floor layout of the whole building in a few minutes, and directly generates CAM and CNC digital operation instructions.

The equipment of huazhong roll forming light gauge steel structure:

Tailored to customer needs and assembles flexibly, high precision and superior user experience, can produce various types of C and U-shaped sections flexibly.


MACHINE PHOTOS

Un-coiler
uncoiler

Capacity

2 tons

Material

#45 steel quenched

Power

2.2KW, 3 Phases, 380V, 50HZ

Method of open and close of segments

manual

Inner diameter of coil

ø508

Maximum outer diameter of coil

ø1,300

Feeding speed

25m/min(transducer control)

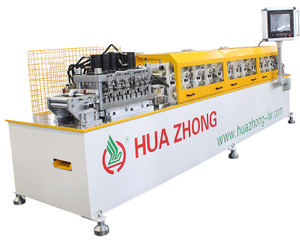

Main roll former

main roll former

Stations

12

Rollers material

CR 15

Bearing brand

FAG Germany

Main motor

7.5KW

Transmission by gear

Station material

cast steel

Machine is equipped with cooling system
Newly upgraded one-piece frame machine


Main parameter
main parameter

Section size

89*41mm

Coil thickness

0.75-1/2mm (galvanized plate/aluminum zinc plate)

Coil width

183mm

Standard working speed

300-700m/h

Maximum working speed

1200m/h

Main motor power

7.5kw

Electricity

3 phases 380V, 50HZ

Hydraulic motor power

7.5KW

Capacity of hydraulic oil tank

200L

Hydraulic pressure adjustment

automatic control, computer monitor

Main motor wireless remote control

standard

Punching model for frame and truss

dimples screw hole, chamfering, the web through hole, small edge shear, pipeline hole, reducing web, shear, the web foundation hole

Product accuracy

±0.5mm

Code machine

standard

Machine size

4900*1000*1500mm

Machine weight

5000kg

Machine color

according to customer


PLC control cabinet(Huazhong CAD LGS maker numerical control system)
PLC
With independent intellectual property rights and leading technology in the industry, our HuazhongCAD LGS maker numerical control system is equipped with professional industrial-grade computer to ensure the stable performance of the software system in any working environment.

Foxconn brand Super 17 inches professional industrial-grade computer, can choose to operate by keyboard, mouse or touch screen, and can switch between manual and automatic.

Extract output data from the software and realize gapless link between design and production without human intervention.
