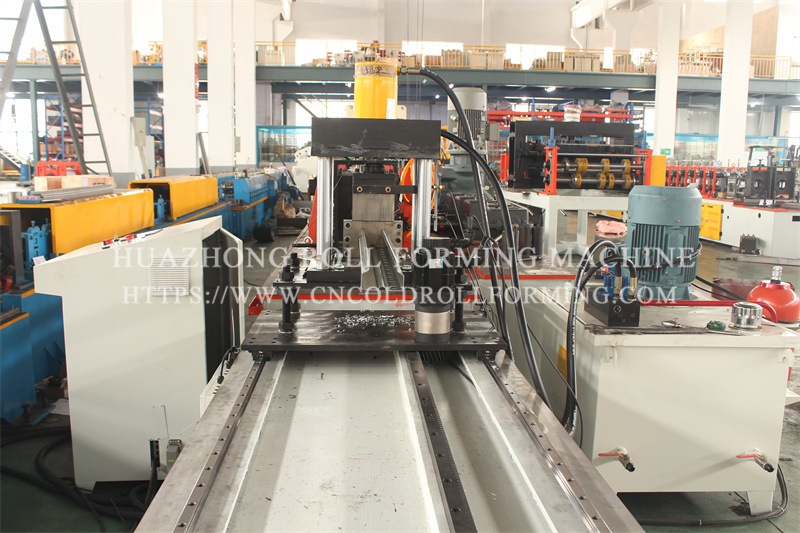

UPRIGHT BEAM FOR SHELVES ROLL FORMING MACHINE

Uncoiler --- leveling---servo feeding---80 tons punching machine---roll forming---hydraulic cutting with servo motor---run out table

Frame:One piece frame

Uncoiler: 5 tons electric uncoiler

Forming station:18

Driving type:Gearbox transmission

Main motor power:11*2kw

Hydraulic system:7.5kw，440V,60HZ,3 phase

Electrical system:Delta

Cutting type:Hydraulic cutting with servo motor

Punching system:Capacity:800KN(JH-80)

Cooling system:Lubrication cooling system

Material thickness:2-2.5mm

Material width:

Forming speed:8-12m/min
