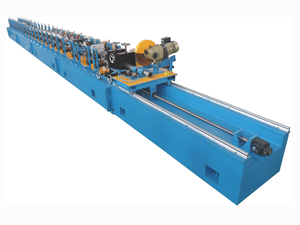

Φ70Φ80 SUNSHADE TUBE ROLL FORMING MACHINE

Uncoiler---Feeding guide---Roll forming---Fly saw cutting with servo motor---Run out table

Frame: Square pipe welding frame

Electric cabinet: Delta PLC control system, Delta inverter

Console: Independent electric cabinet，Delta touch screen

Uncoiler: 3 Tons

Thickness:0.8/1.0mm Galvanized sheet

Coil width: 266/294mm(According to the profile type)

Forming station: 26

Main motor power: 7.5KW*2, 380V, 50HZ, 3Phase

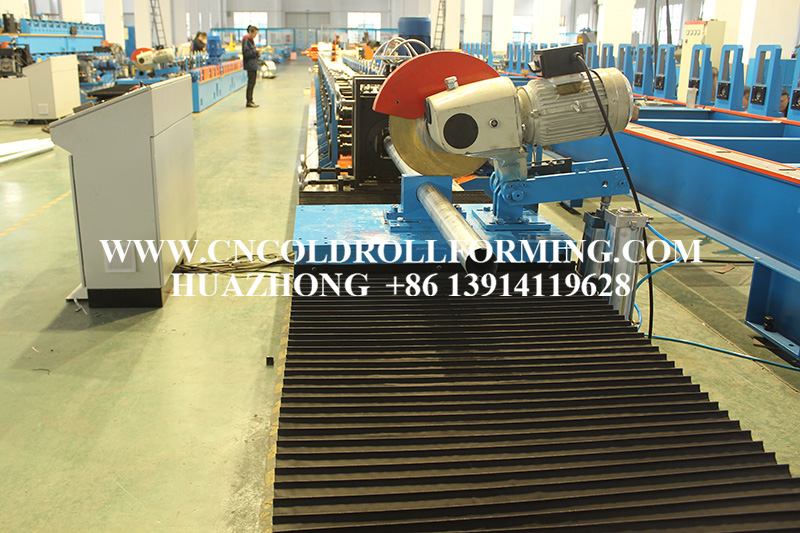

Cutting type: Fly saw cutting with servo motor

Forming speed: 15m/min

Drive type: gear transmission system
