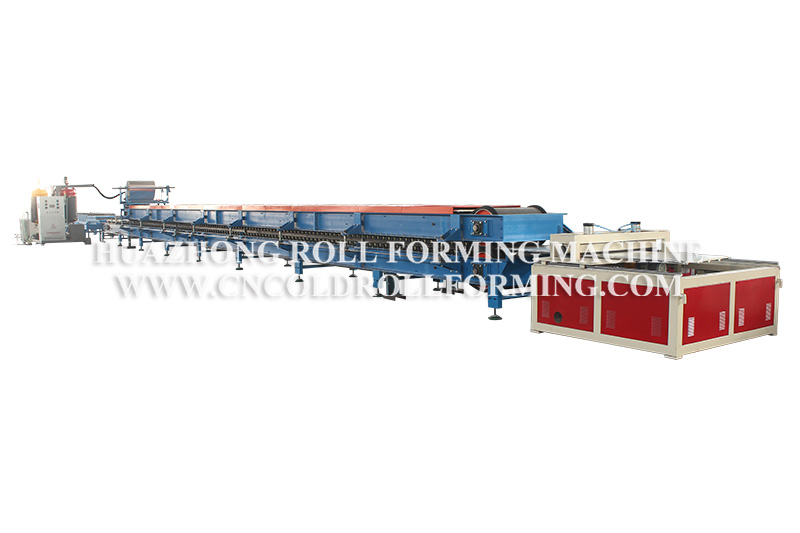

840 ROOF TILE PU SANDWICH PANEL PRODUCTION LINE

Thickness: 0.8-1.6mm
Forming stations: 30
Drive type: 1.2 inches double row chain transmission system
Hydraulic cutting
Forming speed: 15-18m/min

  • HUAZHONG
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Preheating---PU foam injection---Laminating------belt conveyor----Fly saw cutting with servo motor---Run out table


TECHNICAL DETAILS

Uncoiler: 5 Tons hydraulic uncoiler

PLC automatic control system

Forming stations: 14

Thickness: 0.8-1.2mm color plate

Motor power: 60KW

PU foam injection: high pressure foaming (with cooling system).

Belt conveyor press machine: 25m

Cutting type: automatic fly saw cutting with servo motor

Forming speed: 20m/min



MACHINE PHOTOS

840 Roof tile PU sandwich panel production line (2)

840 Roof tile PU sandwich panel production line (10)
