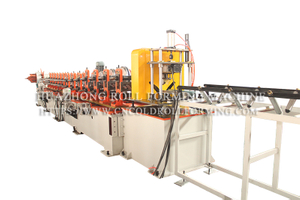

90 DEGREE SHUTTER BOX ROLL FORMING MACHINE WITH AUTOMATIC BENDING

Frame:One-piece frame
Driving type:gearbox transmission
Cutting type: Fly saw cutting
Material thickness:0.7-0.9mm
Forming speed:10-15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229000

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Fly saw cutting---Run out table


TECHNICAL DETAILS

Frame: Automatic width adjustable frame (width range 137-300 adjustable)

Uncoiler: 2 Tons

Forming station: 22

Driving type: gearbox transmission

Main motor power: 7.5KW*1,220/380V,50/60HZ,3 Phase,OMT

Electrical system: Delta control system, external electric cabinet, Delta PLC

Cutting type: Fly saw cutting, flying saw head moves horizontally with the motor

Material thickness: 0.7-0.9mm，aluminium alloy

Forming speed: 15-20m/min

Run out: 7m

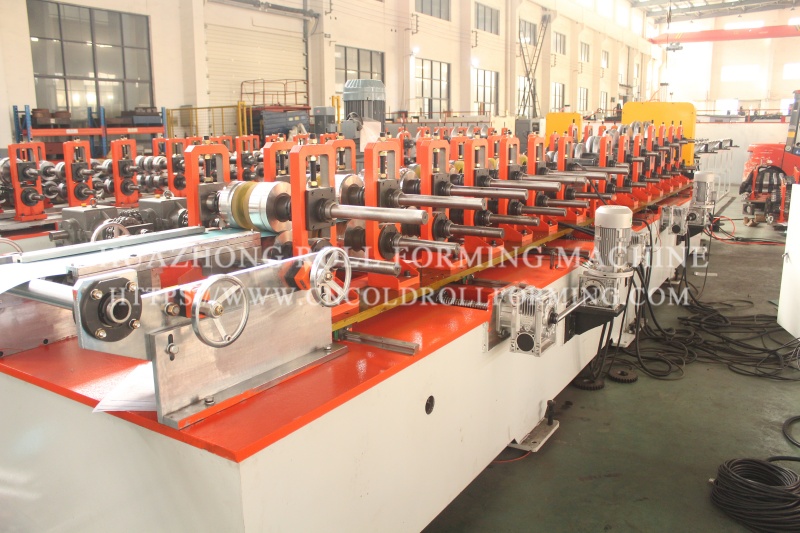

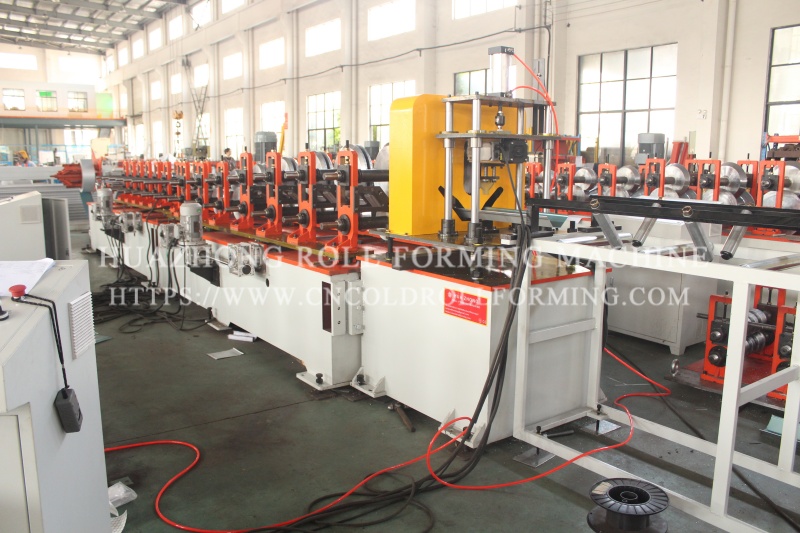

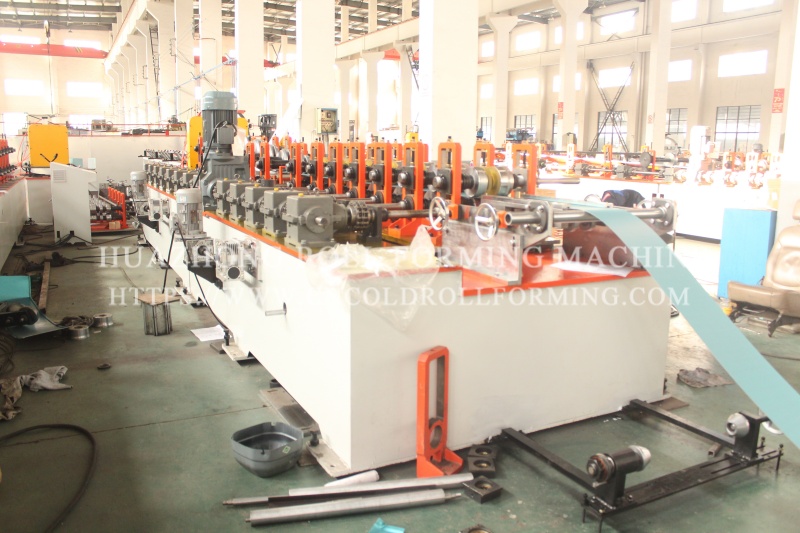

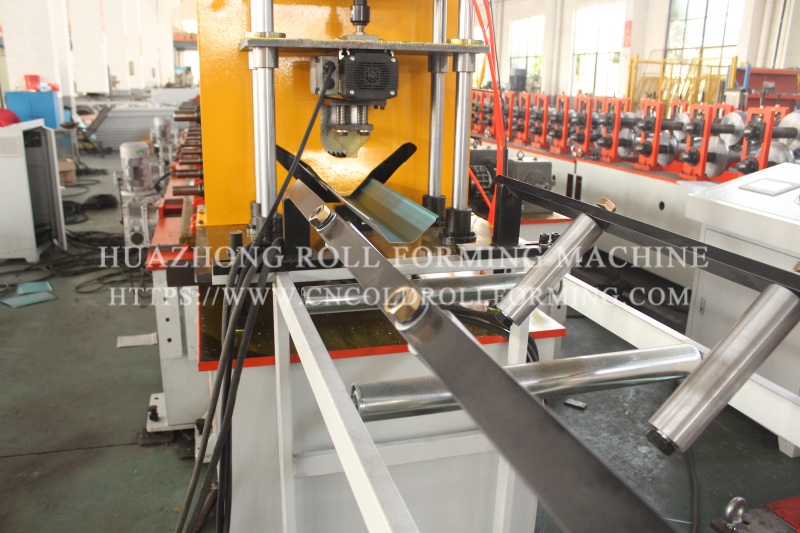

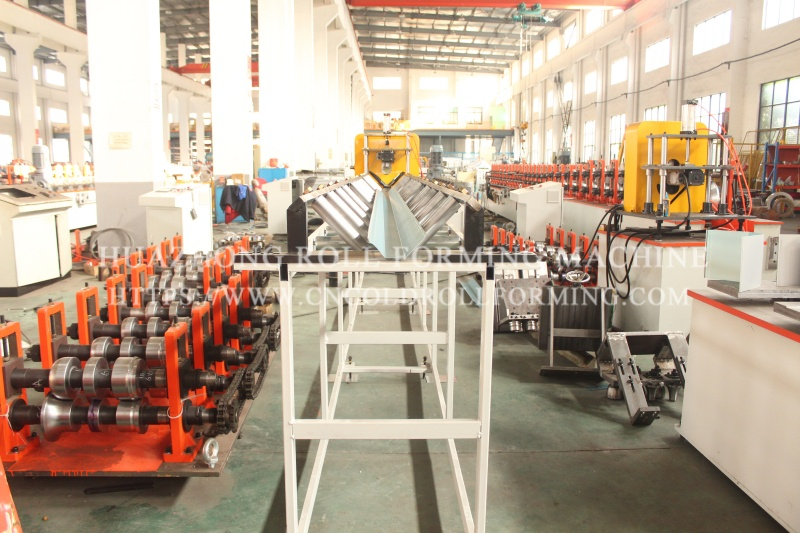

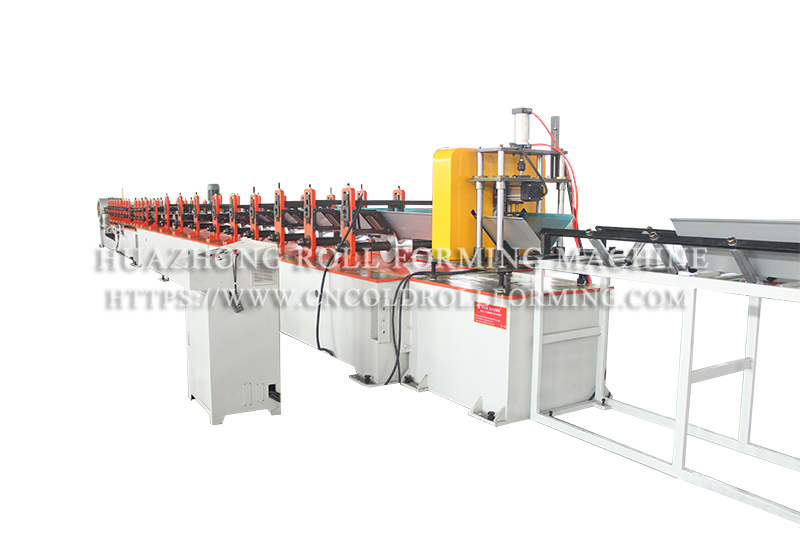

MACHINE PHOTOS

90 degree shutter box roll forming machine(Automatic bending) (3)90 degree shutter box roll forming machine(Automatic bending) (4)

VIDEO


FACTORY INFORMATION

客户照片1客户照片2

90 DEGREE ROLLER SHUTTER BOX ROLL FORMING MACHINE shutter box forming machine manufactury SHUTTER BOX FORMING MACHINERY roller shutter box forming machine with auotmatic bending SHUTTER BOX ROLL FORMING MACHINE SHUTTER DOOR BOX ROLL FORMING MACHINE SHUTTER ROLL DOOR FRAMER FORMING MACHINE ROLLER SHUTTER BOX FORMING MACHINE COLD ROLL FORMING MACHINE Cold roll forming machinery
