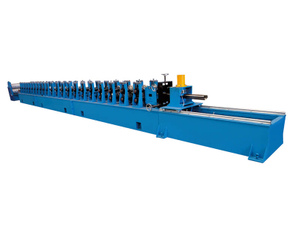

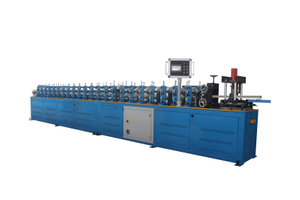

ROLL FORMING MACHINE FOR METAL DOOR FRAME

Stations: 20
Galvanized steel: 0.89-1.99mm
Transmission system: transmission by gear
Cutting type: hydraulic cutting with servo motor
Machine speed :12-18m/min

  • HUAZHONG
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

PROFILES/PICTURES OF THE MACHINE

TECHNICAL DETAILS

1.Un-coiler

Loading Capacity: 5 tons

O.D. 1,100mm

I.D. 480 - 510mm

Plate width: 600mm

Driven power: 5.5kw

Hydraulic power automatic expansion to tighten the coil  (Hydraulic Power: 5.5kw)

According to the front main machine speed, automatic feeding material

Hydraulic coil loading and unloading equipment

2.Main roll former

Stations: 20

Rollers material: CR 15, HRC 60. Chrome coated: 0.03-0.05mm, Strength (MPA): 70 tons, 800 MPA

Shaft: diameter 55mm, material is #45 steel. Quenched hot treatment. Strength of the main shaft (MPA): 70 tons, 650MPA, Through shaft

One side fixed and the other flexible

The flexible size can quick change

Bearing brand: FAG Germany

Main motor: 7.5KW, 220V/380V, 50HZ/60HZ, 3 Phases (Siemens Brand) two motors

Transmission by gear

Station material: cast steel

Newly upgraded one-piece frame machine

Can automatic adjust the profile width

3.PLC control cabinet

Touch screen brand: Delta Taiwan

PLC brand: Siemens

Inverter brand: Siemens

Main components for low pressure electricity: Schneider Germany

Encoder: Omron

Sensor: Balluff B+F brand

4.Cutting platform

Cutting type: hydraulic cutting with servo motor

The material of knives: CR12MOV; heat treatment HRC 55-60, Quenched; the Strength in MPA: 950

Servo motor: 1.5KW, 220V

Tolerance of length: ±0.5mm

Action: the host does not stop, servo track to cut off

The cutting frame have quick change system

5.Hydraulic Station parameter

Hydraulic Motor: 11KW, 220V/380V, 50HZ/60HZ, 3 Phases, Siemens brand

Hydraulic pump: Yuken brand Taiwan

Hydraulic valve: Rexroth Germany

Hydraulic cylinder: China

The Hydraulic station have Accumulator

6.Output table

Length: 6 meters

Drive type: rollers

7.Input material

Material: galvanized sheet

Galvanized steel: 0.89-1.99mm

8.Dimension (L*W*H)

18.8m*1.85m*1.36m

9.Working speed

10-12m/min (including cutting) (machine speed :12-18m/min)

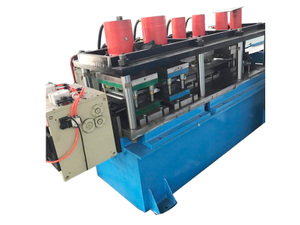

MACHINE PHOTOS


3Tons Un-Coiler

quick change system

90°bending male and female

Lock-headed holes

hinge hole
