ROLL FORMING MACHINE FOR SHUTTER BOTTOM

Newly upgraded shutter bottom roll forming machine;
European standard;
Fast working speed;
various thickness range.

  • HZ
  • HUAZHONG
  • 8455229090

PRODUCT DESCRIPTION

uncoiler---feeding guide---roll forming---pneumatic cutting---run out table

TECHNICAL DETAILS

Uncoiler: 3 Tons

Fly saw cutting with servo motor

PLC automatic control system

Run out table

Material: galvanized plate

Thickness: 0.6-0.8mm

Coil width: 164mm (According to the profile type)

Drive type: gear box transmission system

Forming stations: 18-25

Main motor power:11KW

Forming speed: 10-15m/min

Cooling system

MACHINE PHOTOS

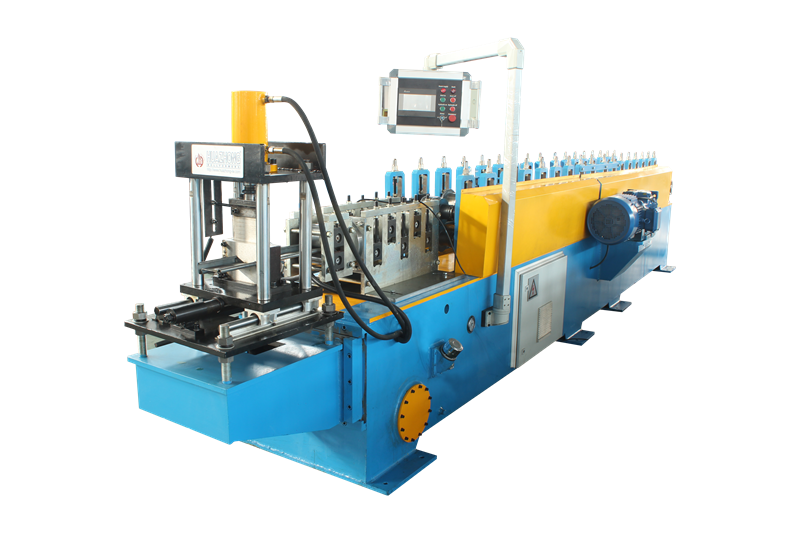

shutter bottom forming machine 1
