THREE WAVE GUARD RAILS ROLL FORMING MACHINE

Thickness:4-5mm
Forming station: 20
Drive type: Each station with a motor to drive
Forming speed: 12-15m/min

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---leveling---feeding with servo motor and punching ---cutting---Automatic platform transportation---roll forming---run out table

TECHNICAL DETAILS

Frame: Iron frame

Uncoiler: 5 tons uncoiler, electric

Forming station: 20

Driving type: Each station with a motor to drive

Main motor power: 55KW

Electrical system: Siemens control system

Punching system: 500 Hydraulic press machine

Material thickness: 4-5mm

Forming speed: 12-15m/min

Run out: 6m run out table

Others: Feeding machine with servo motor, servo motor:5.5kw, 7 rollers leveling


MACHINE PHOTOS

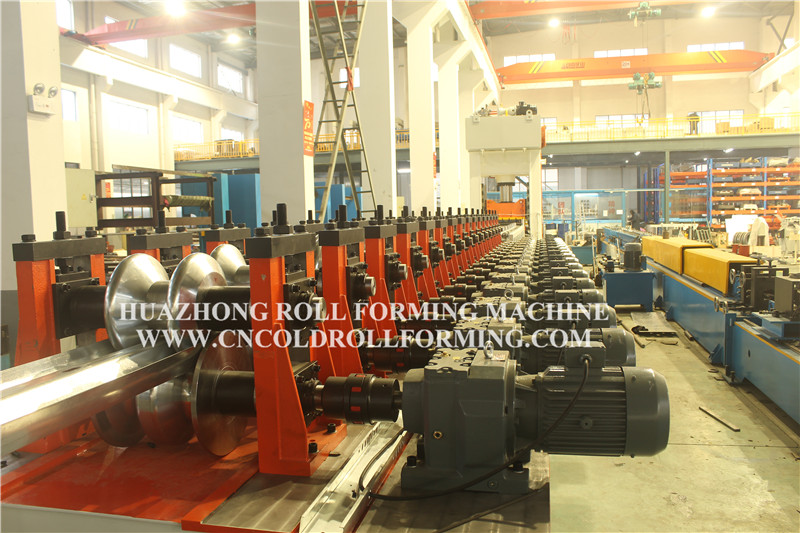

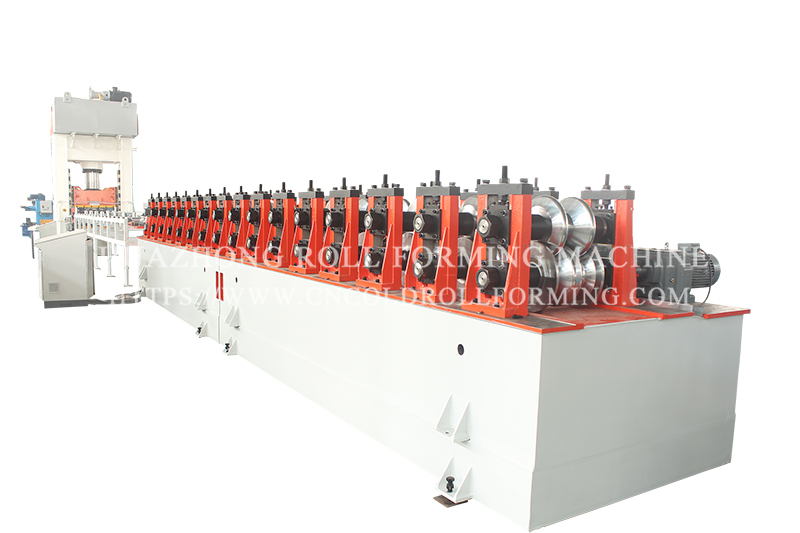

three wave guard rails roll forming machine (1)three wave guard rails roll forming machine (2)three wave guard rails roll forming machine (3)
