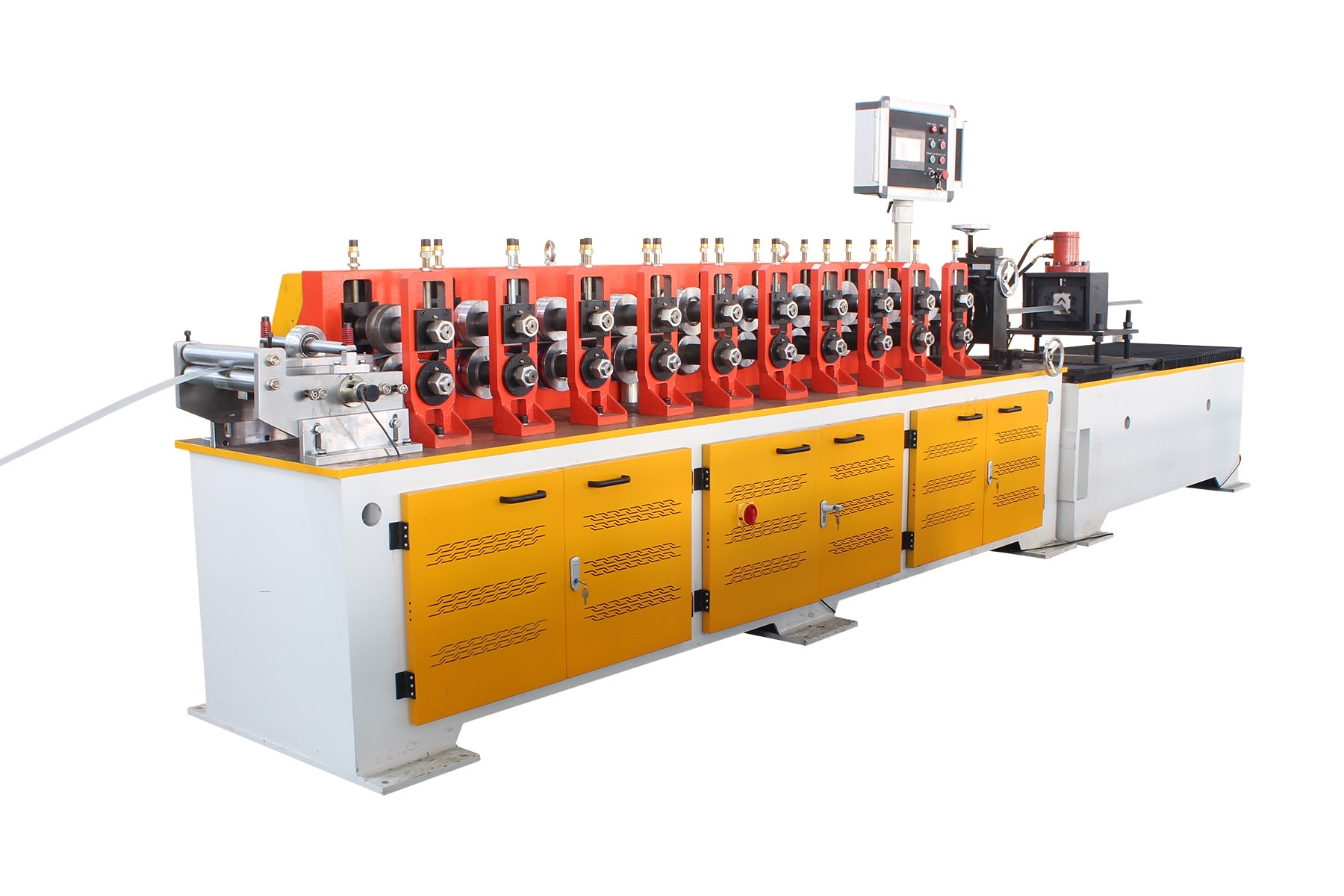

ANGLE ROLL FORMING MACHINE

Thickness: 0.3-0.6mm
Forming station: 10
Drive type: gear transmission system
Forming speed: 30m/min
Frame: One-piece frame

  • HUAZHONG

  • HUAZHONG

  • 8455229090

Availability:
Inquire

PRODUCT DESCRIPTION

Uncoiler---Feeding guide---Roll forming---Hydraulic cutting---Run out table

TECHNICAL DETAILS

Frame: One-piece frame

Embedded hydraulic station: 4KW, 380V, 50HZ, 3Phase

Embedded hydraulic cabinet: Delta PLC control system, Delta inverter

Cantilever console: Delta touch screen

Uncoiler: 3 Tons

Thickness: 0.3-0.6mm

Coil width: 0.3-0.6mm(According to the profile type)

Forming station: 10

Main motor power: 7.5KW, 380V, 50HZ, 3Phase

Forming speed: 30m/min

Drive type: gear transmission system

MACHINE PHOTOS

Angle roll forming machine-4

Angle roll forming machine-6
